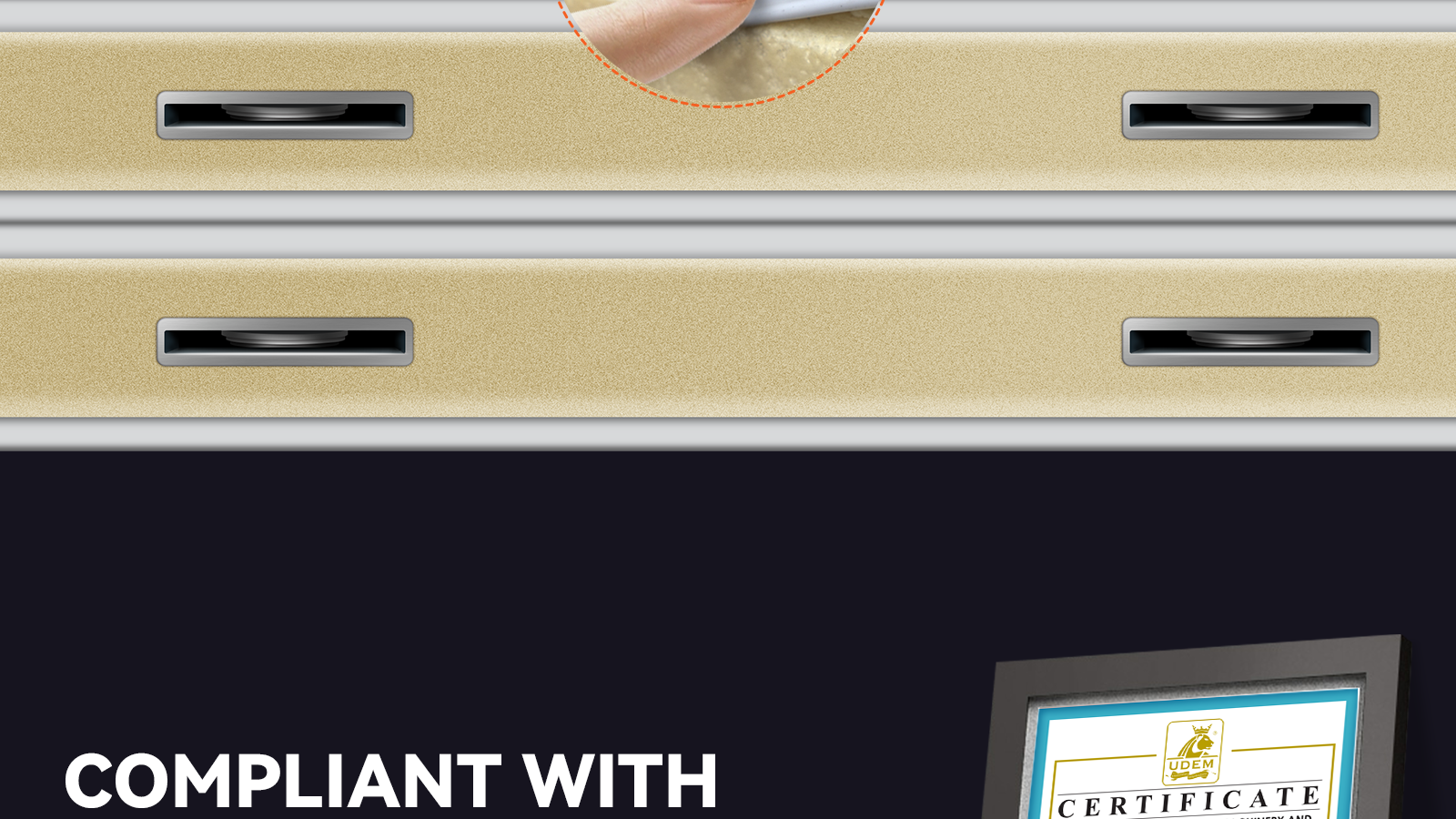

Fland Cold Storage PU Panels With Cam-lock

5 6 Reviews
Fland cold storage panels provide superior thermal insulation and structural integrity for walk-in cold/freezer rooms. Engineered with high-density PUR/PIR foam cores (75mm/100mm/120mm/150mm/200mm thickness) sandwiched between stainless steel/galvanized steel facings, they achieve ultra-low thermal conductivity and B1 fire resistance.These panels feature cam-lock joints for airtight assembly, withstand heavy loads, and prevent condensation. Ideal for food processing, pharmaceutical storage, and supermarket cold rooms demanding energy efficiency, hygiene, and long-term durability.
Price: $ 14  -  32 / ㎡
Panel thickness :
75mm
100mm
120mm
150mm
200mm
Material :
Double-sided color steel 0.3
Double-sided color steel 0.4
Double-sided color steel 0.5
Double-sided color steel 0.6
SKU:
Availability:
Quantity:

facebook sharing button
twitter sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Fland

库板详情-宽屏_01库板详情-宽屏_02库板详情-宽屏_03库板详情-宽屏_04库板详情-宽屏_05库板详情-宽屏_06库板详情-宽屏_07库板详情-宽屏_08库板详情-宽屏_09库板详情-宽屏_10库板详情-宽屏_11库板详情-宽屏_12库板详情-宽屏_13

Product name PU Panels With Cam-lock
Warranty1 Year
Place of originAnhui, China
CertificationCE/NSF
MOQ1 piece
Thickness

75mm 100mm 120mm 150mm 200mm

Width

Standard:950mm

Customization Available

LengthMaximum 10m without connection
PU ParametersDensity≥42kg/m³
Flame Retardent Time≤5s
Hook Distance =900mm

Plate		Color Steel0.326mm 0.376mm 0.426mm 0.476mm
Stainless Steel0.4mm 0.5mm
BaoStell0.5mm
Embossed Aluminium0.7mm 0.8mm

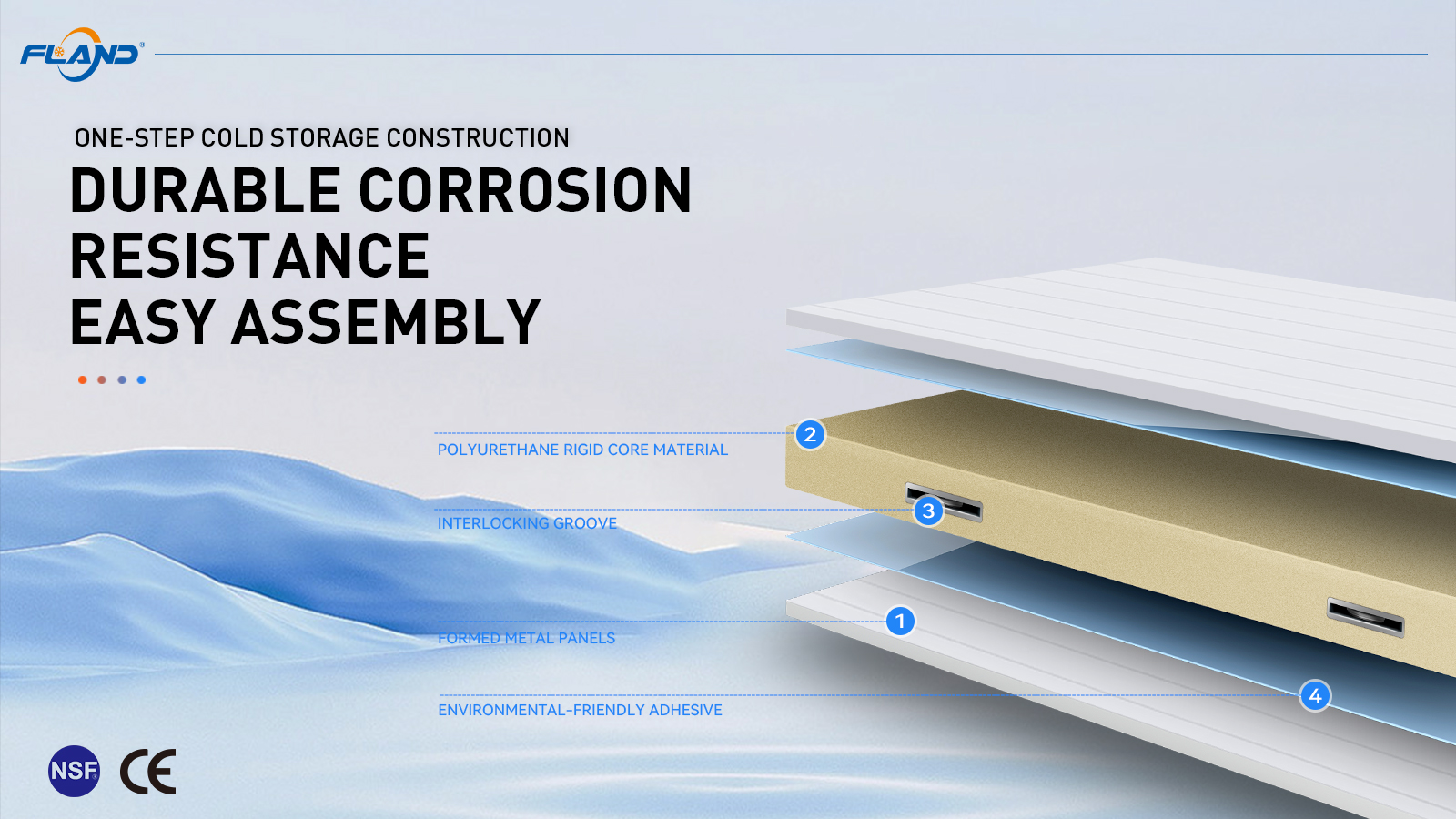

ONE-STEP COLD STORAGE CONSTRUCTION

  • DURABLE CORROSIONRESISTANCE

  • EASY ASSEMBLY

  • POLYURETHANE RIGID CORE MATERIAL

  • INTERLOCKING GROOVE

  • FORMED METAL PANELS

  • ENVIRONMENTAL-FRIENDLY ADHESIVE


BRAND NEW UPGRADE 6 CORE FUNCTIONS

  • DUAL-PURPOSE STORAGE

  • DENSITY ≥ 40KG/M

  • CONVENIENT INSTALLATION

  • COOLING CAPACITYAIR COOLER

  • EFFICIENT INSULATION

  • PREMIUM MATERIALS

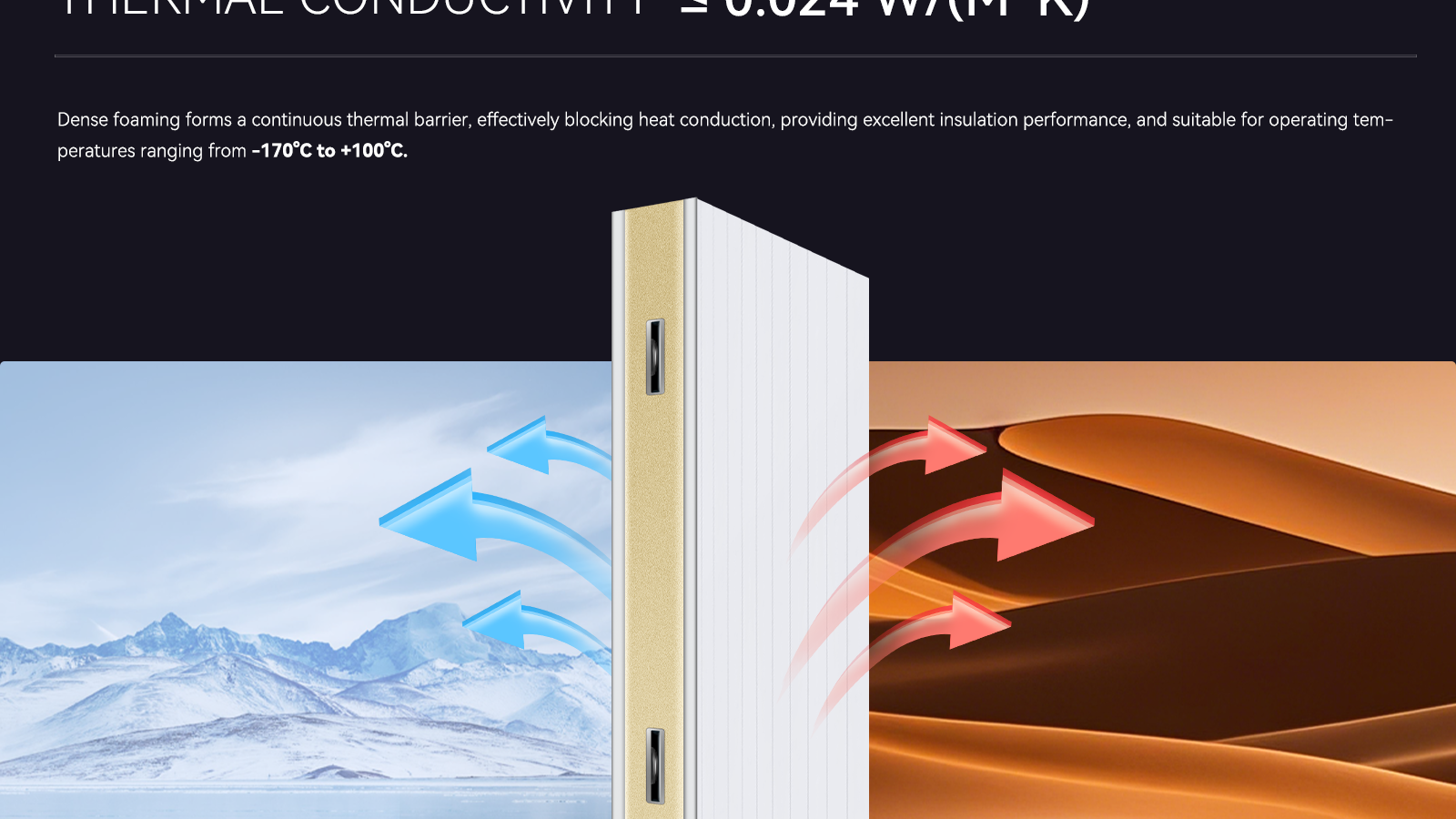

THERMAL CONDUCTIVITY ≤ 0.024 W/(M·K)

Dense foaming forms a continuous thermal barrier, effectively blocking heat conduction, providing excellent insulation performance, and suitable for operating temperatures ranging from -170℃ to +100℃。

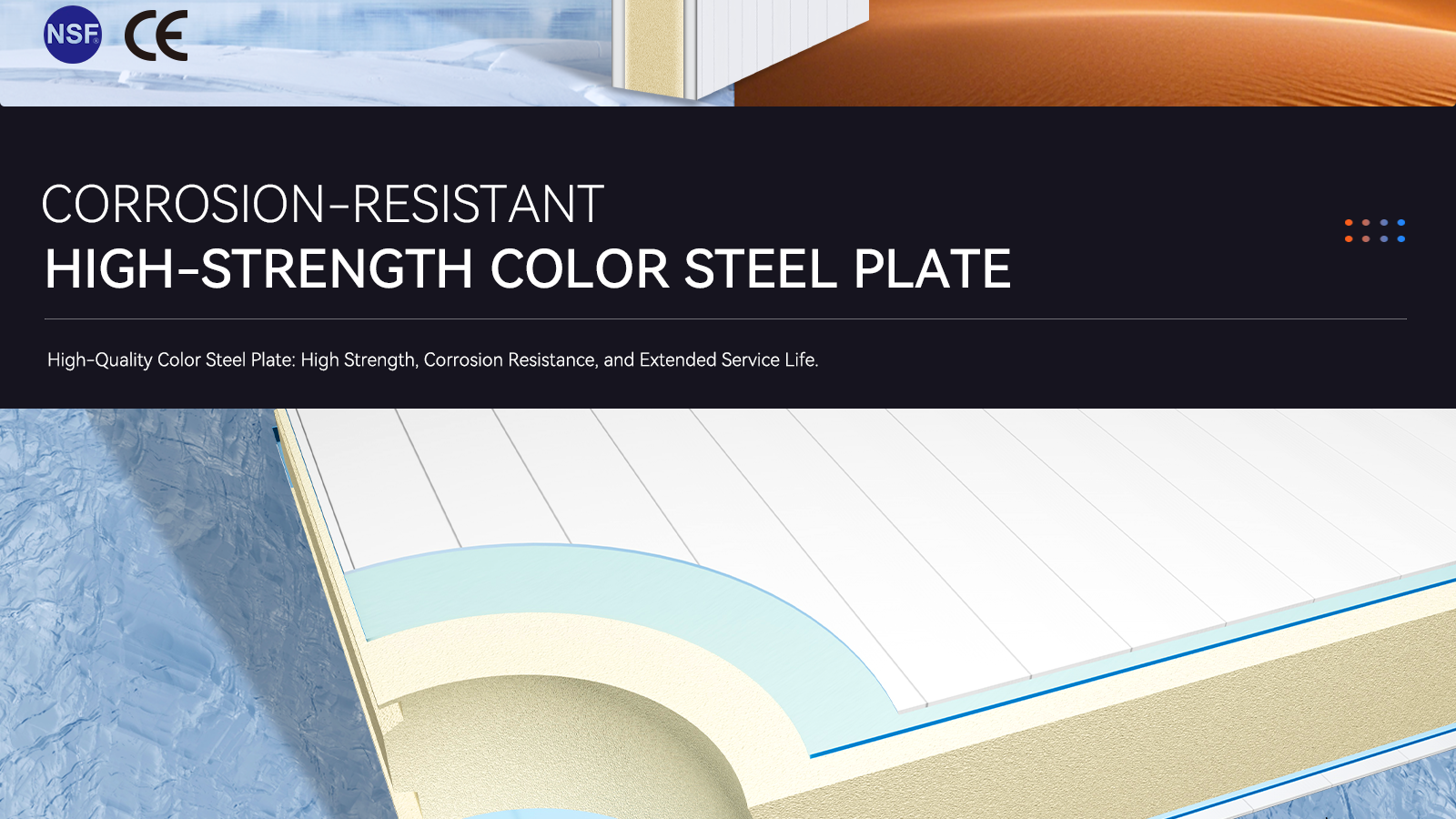

CORROSION-RESISTANT HIGH-STRENGTH COLOR STEEL PLATE

High-Quality Color Steel Plate: High Strength, Corrosion Resistance, and Extended Service Life.


HIGH-PERFORMANCE COLD STORAGE PANEL CORE

The closed-cell rate of polyurethane rigid foam can reach over 95%, and the water absorption rate is ≤ 2%.

Low water absorption and high closed-cell rate.

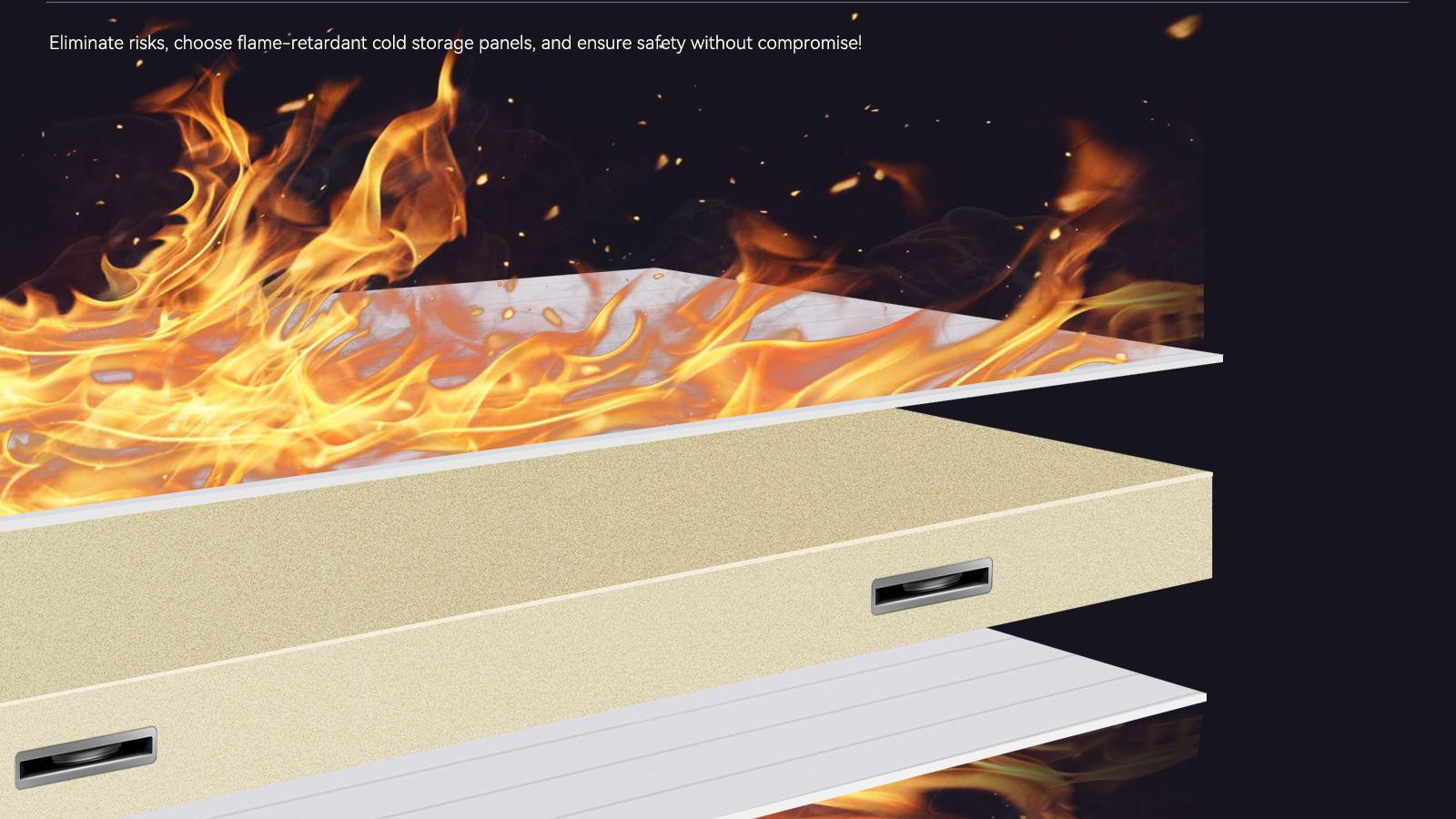

ULTRA-HIGH EFFICIENCYFLAME RETARDANT

Eliminate risks, choose flame-retardant cold storage panels, and ensure safety without compromise


PUR/PIR HIGH-DENSITY CORE MATERIAL

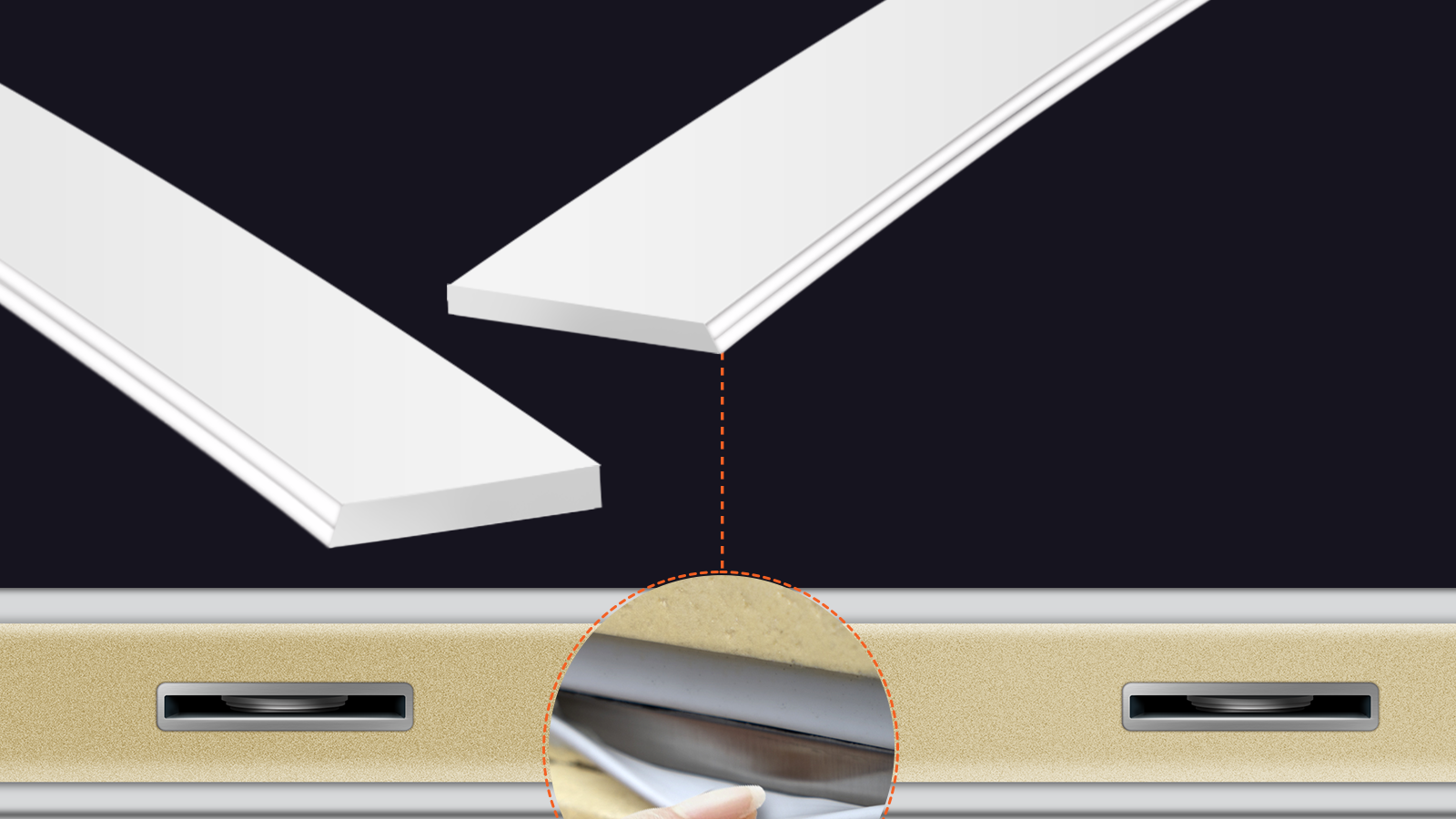

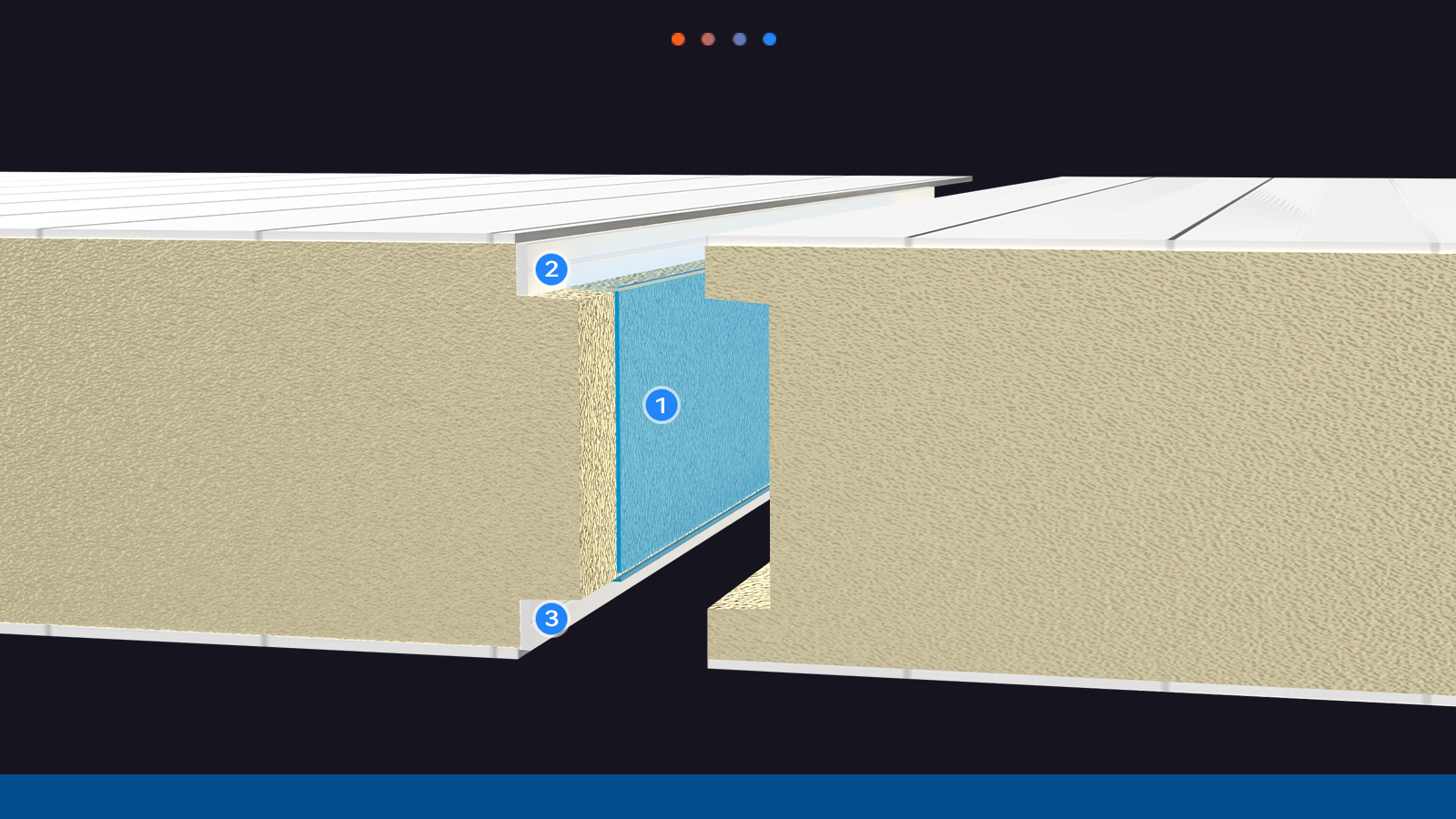

SEALING STRIPS CAN BE ADDED TO THE CONNECTION AREA OF THE PANELS


OPTIONAL UPGRADES:NOW EQUIPPED WITH HIGH-SEALING GASKETS

Whether in high-temperature or low-temperature environments, it ensures a tight fit, effectively preventing air and moisture penetration, and providing reliable protection for the interior of the equipment.

Customer comment

 5 / 5

 6  Comment

5 Alaska Salmon HQ Approved! -30°F Hold with 1/3 Less Power!
By  Aquarius   On 2025-04-15
Tougher than a grizzly's hide! Our Juneau processing plant saved 37% energy after installing these bad boys. The triple-seal joints stopped icy drafts dead. Crew adored the forklift slots – no more crushed corners. Survived -55°F cold snap while our competitor's room failed. Fish guys: skip cheap foam – this is Arctic armor!
5 Champagne Cave Miracle! Isolation Parfaite pour Grands Crus!
By  Fancy  On 2024-09-10
Incroyable étanchéité ! Nos caves à Reims gardent désormais 12°C constants – ±0.3°C même en canicule ! Les joints quadruples bloquent l'humidité extérieure. Finition acier brossé sublime notre patrimoine. Technicien Marc a calibré les panneaux autour de nos fûts historiques. Investissement ? Non, sacre du terroir !
5 Yorkshire Brewery Gem! Keeps Ale at 4°C in Damp Cellars!
By  Celtic   On 2024-06-10
Proper bloody brilliant! Our cellar used to sweat more than a pub landlord on payday. These food-grade panels? Blocked 95% humidity cold bridging. Anti-mold coating saved our casks from must. Fitter Dave cut curves for stone arches like a sculptor. CAMRA inspector sniffed ‘impeccable conditioning’ – highest praise!
5 ¡Santo Remedio! Nuestro Chile Seco No Enmohece en Lluvias!
By  cholera   On 2024-04-04
¡Órale qué maravilla! En temporada de huracanes, nuestro chile ancho se pudría. ¡Estos paneles con núcleo anti-hongo? Sellarón como tumba maya! La carcasa de acero aguantó granizo del tamaño de limones. Alerta WhatsApp detectó una fisura – reparada en 2 horas. ¡Hasta Doña Rosa dice ‘esto es brujería buena’!
5 Florida Pharmacy Hero! Stops Humidity Mold in Hurricane Season!
By  Miller   On 2024-03-10
Game-changer for med storage! Our insulin room used to sweat bullets in August storms. These antimicrobial panels? Sealed tighter than a submarine! Moisture sensors caught a tiny gap we missed – fixed before mold bloomed. Stainless steel skin shrugged off salt spray. Tech Juan drove through flooded roads to deliver. Lifesaver literally!
5 Midwest Freezer Farm Savior! Blocks -40°F Windchill Like a Boss!
By  Lillian   On 2023-07-10
Hot damn these panels are tough! Our Nebraska beef locker got walloped by polar vortex winds. Old fiberglass panels iced up like Antarctica – these polyurethane beasts? Zero thermal bridging! R-50 rating laughs at -40°F. Crew loved the snap-lock design – built 2000 sq ft in one blizzard weekend. Saved $12k on heater cables alone. Ranchers: this is your forcefield against Old Man Winter!
