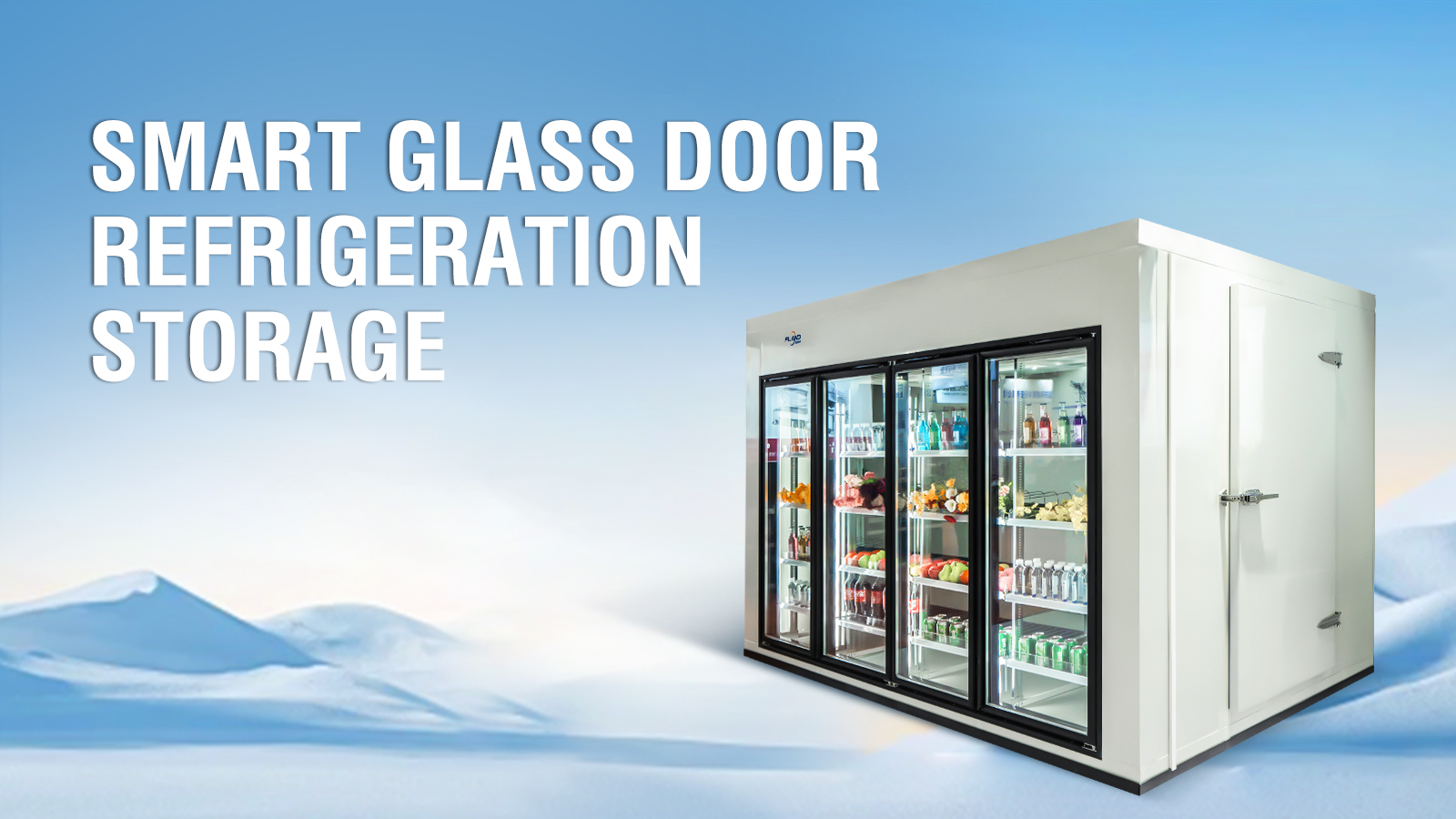

Fland Smart Glass Door Refrigeration Storage

SMART GLASS DOOR REFRIGERATION STORAGE

COMPLETELY UPGRADED-Six core features

• Dual-purpose storage

• Super preservation technology

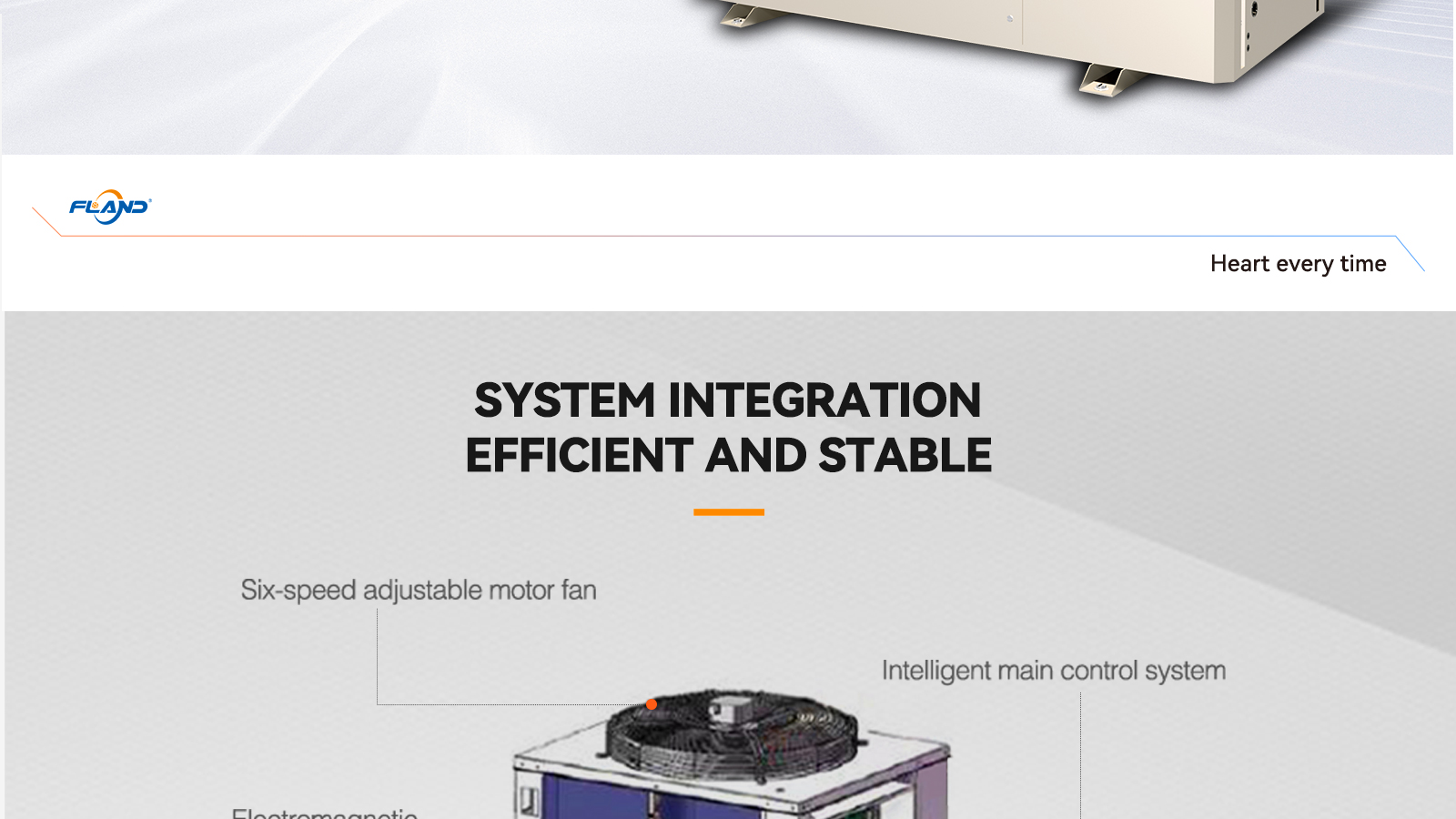

• Smart Integrated Cooling Source

• Cooling capacity air cooler

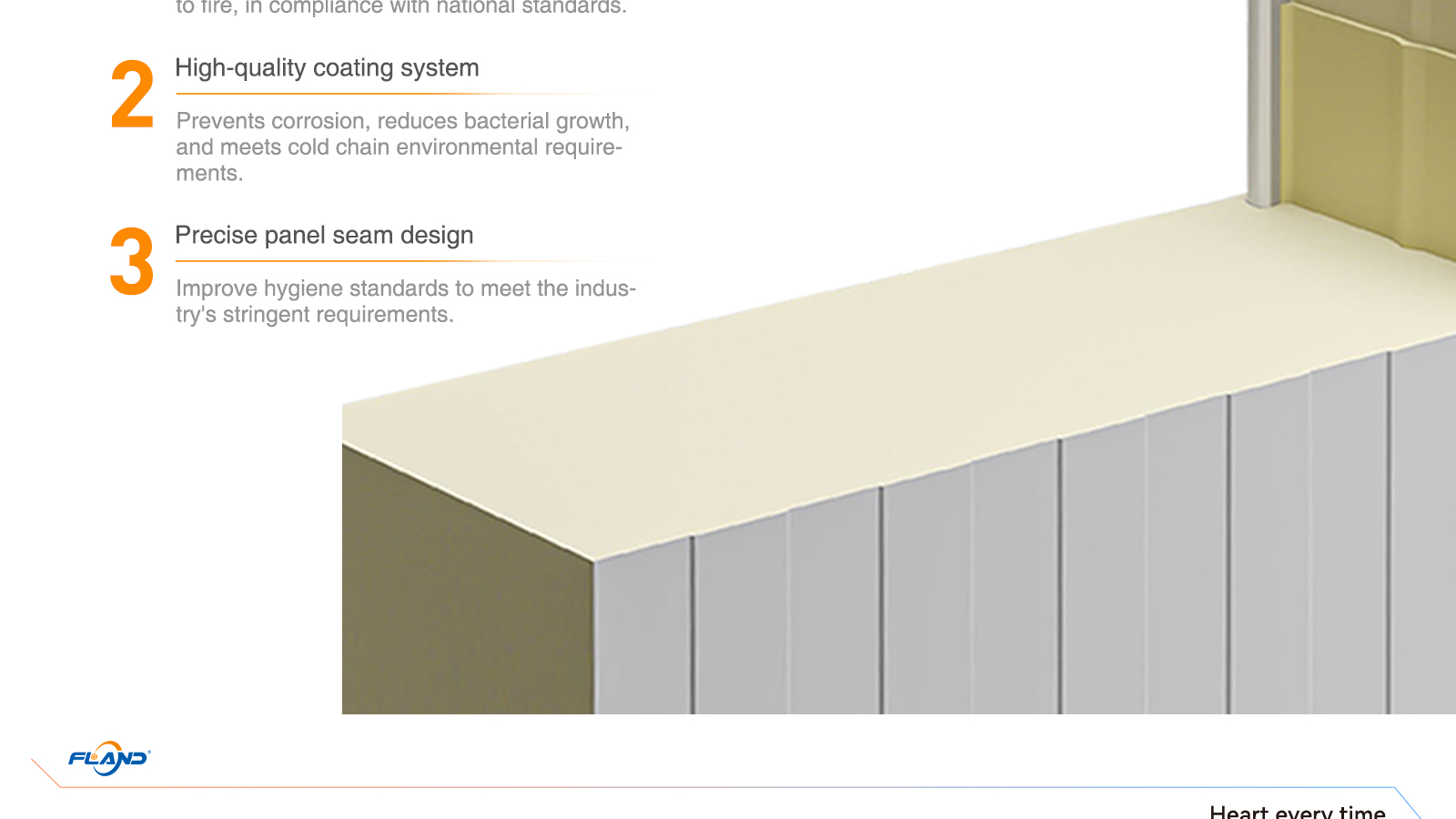

• Core material B1 grade

• 13%-26% Energy Savings

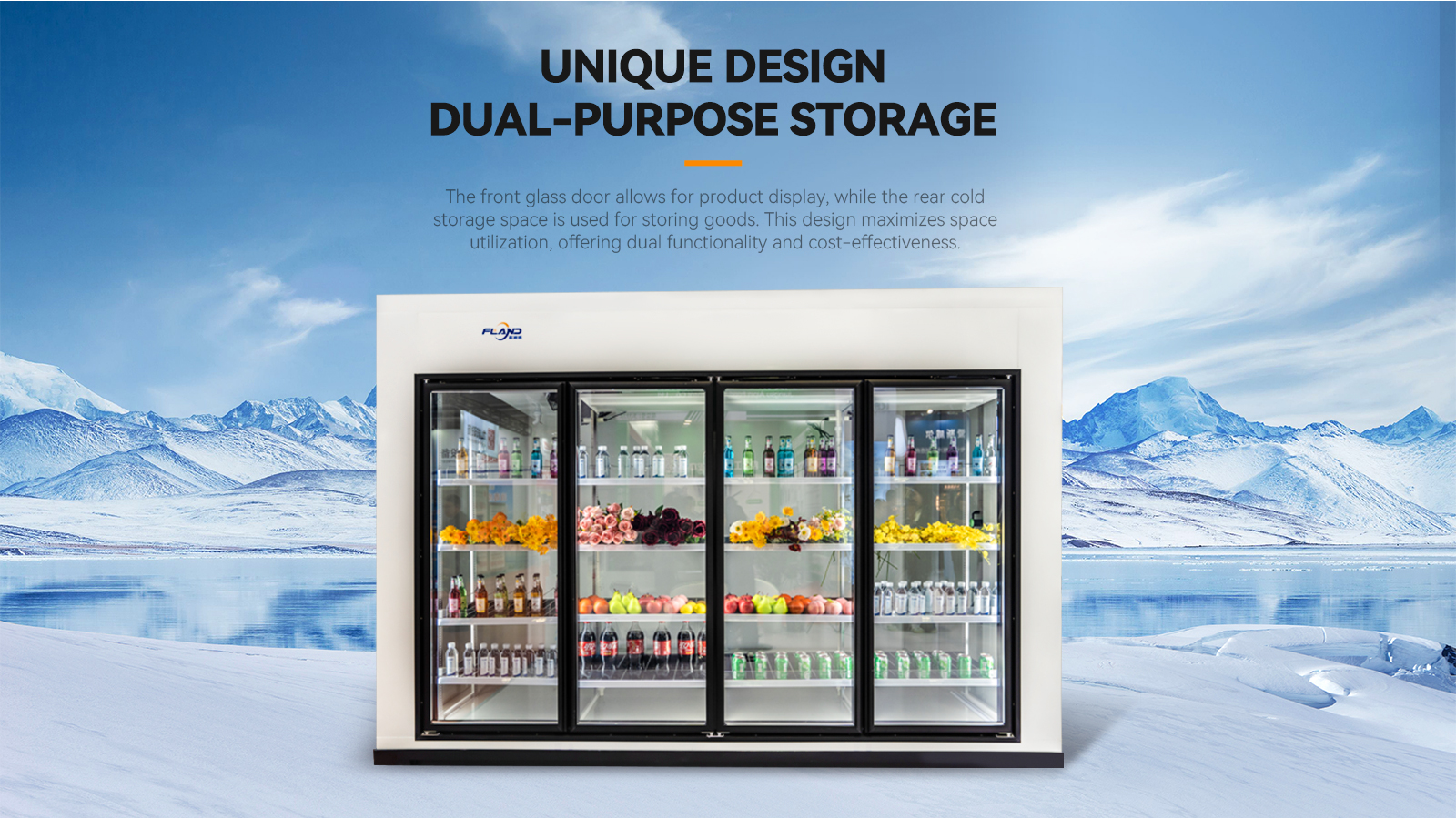

UNIOUE DESIGN DUAL-PURPOSE STORAGE

The front glass door allows for product display, while the rear cold storage space is used for storing goods. This design maximizes space utilization, offering dual functionality and cost-effectiveness.

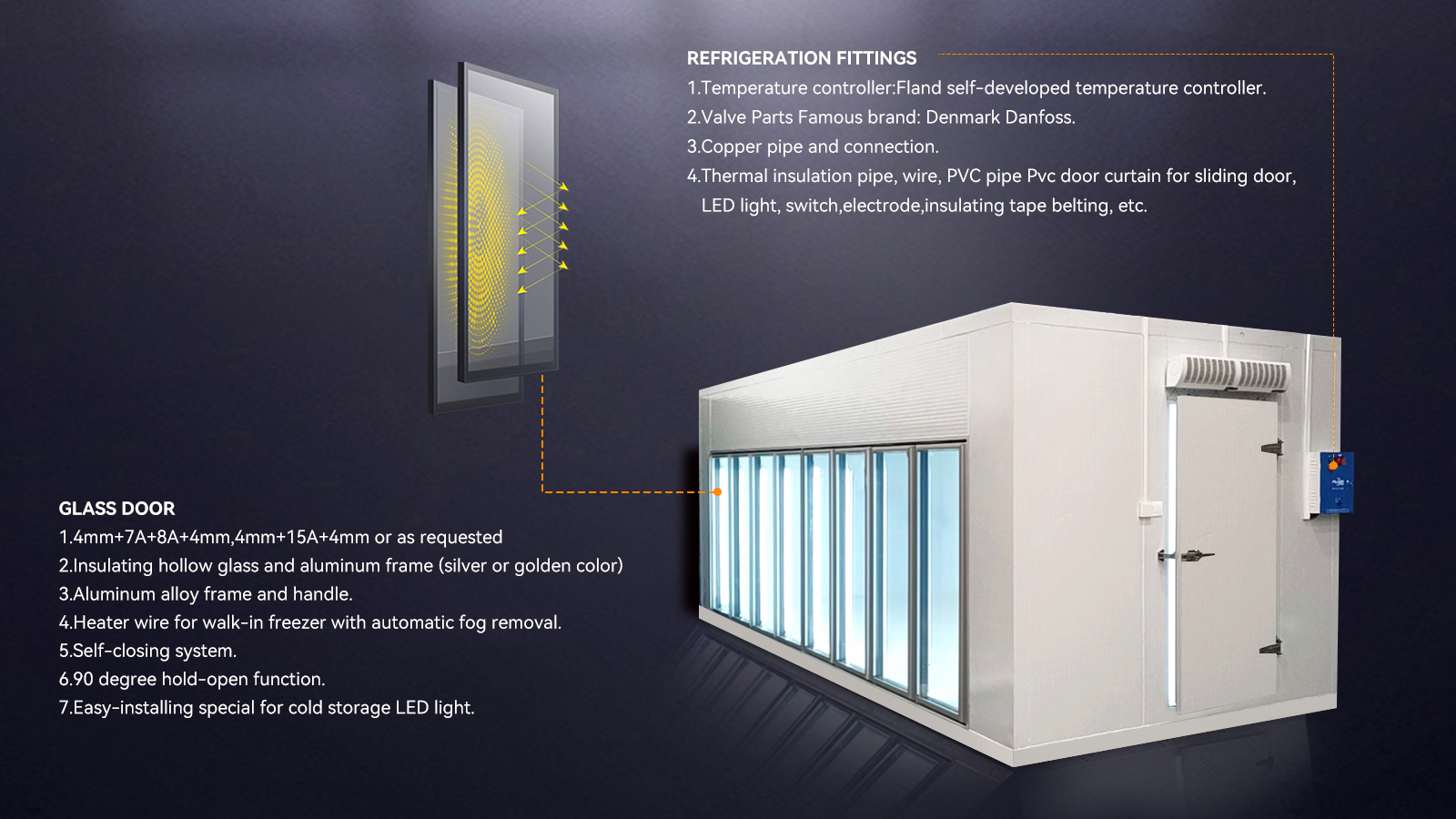

REFRIGERATION FITTINGS

1.Temperature controller:Fland self-developed temperature controller.

2.Valve Parts Famous brand: Denmark Danfoss.

3.Copper pipe and connection.

4.Thermal insulation pipe, wire, PVC pipe PVC door curtain for sliding door LED light, switch,electrode,insulating tape belting, etc.

GLASS DOOR

1.4mm+7A+8A+4mm,4mm+15A+4mm or as requested

2.Insulating hollow glass and aluminum frame (silver or golden color)3.Aluminum alloy frame and handle.

4.Heater wire for walk-in freezer with automatic fog removal.

5.Self-closing system.

6.90 degree hold-open function.

7.Easy-installing special for cold storage LED light.

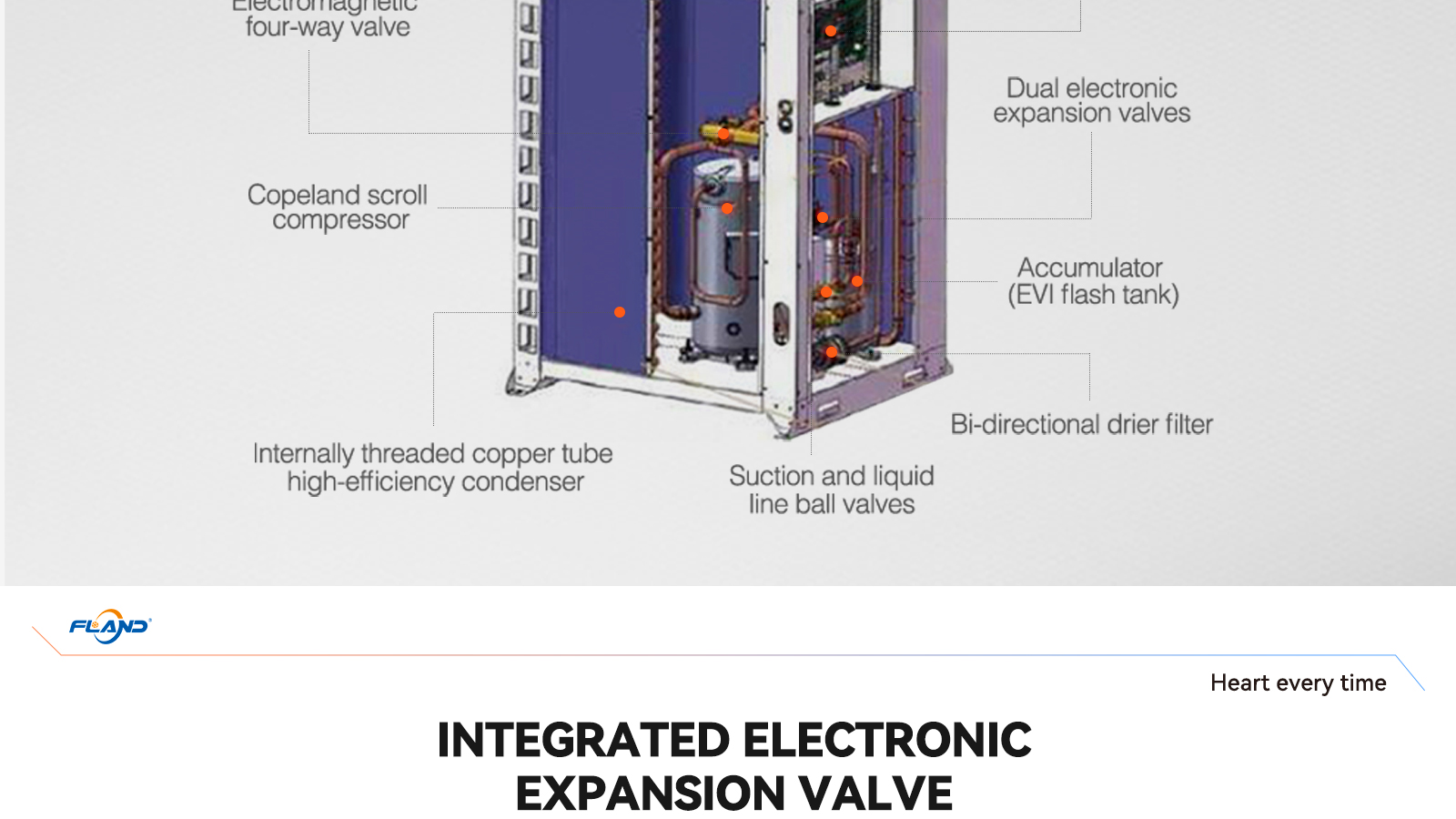

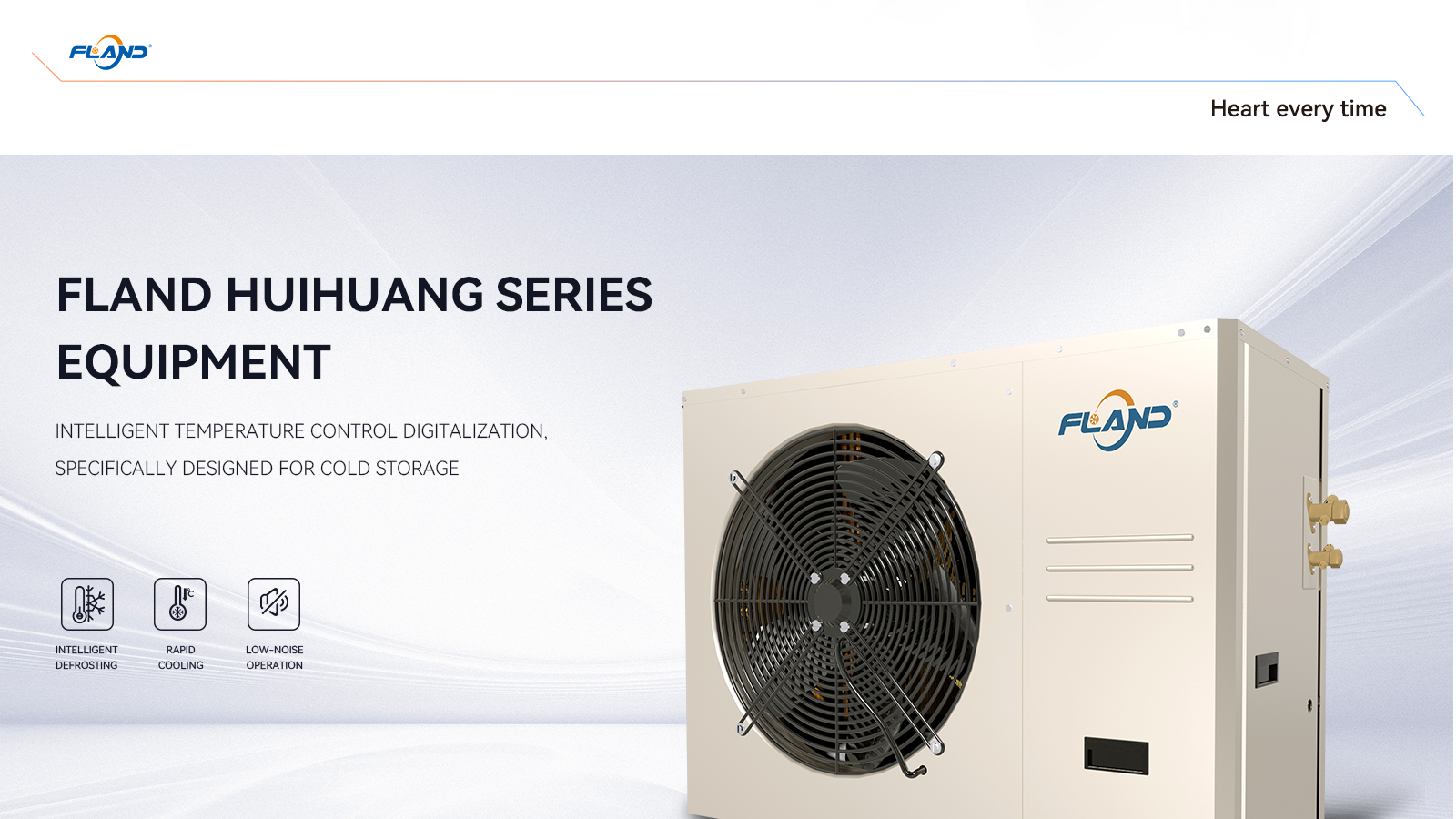

FLAND HUIHUANG SERIES

EQUIPMENT

INTELLIGENT TEMPERATURE CONTROL DIGITALIZATION

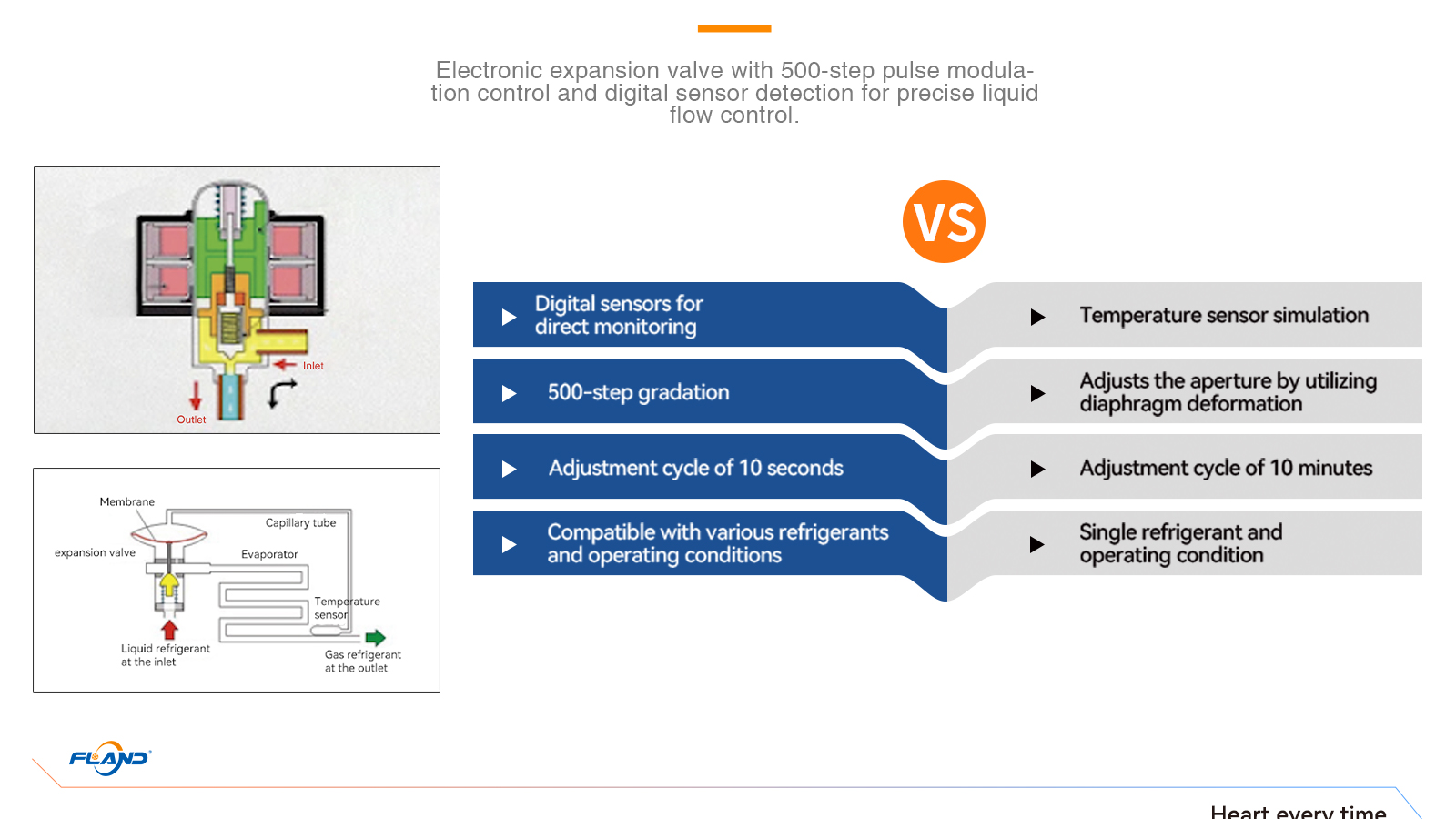

INTEGRATED ELECTRONICEXPANSION VALVE

Electronic expansion valve with 500-step pulse modulation control and digital sensor detection for precise liquid flow control.

• Digital sensors for direct monitoring

• 500-step gradation

• Adjustment cycle of 10 seconds

• Compatible with various refrigerants and operating conditions

• Temperature sensor simulation

• Adjusts the aperture by utilizing diaphragm deformation

• Adjustment cycle of 10 minutes

• Single refrigerant and operating condition

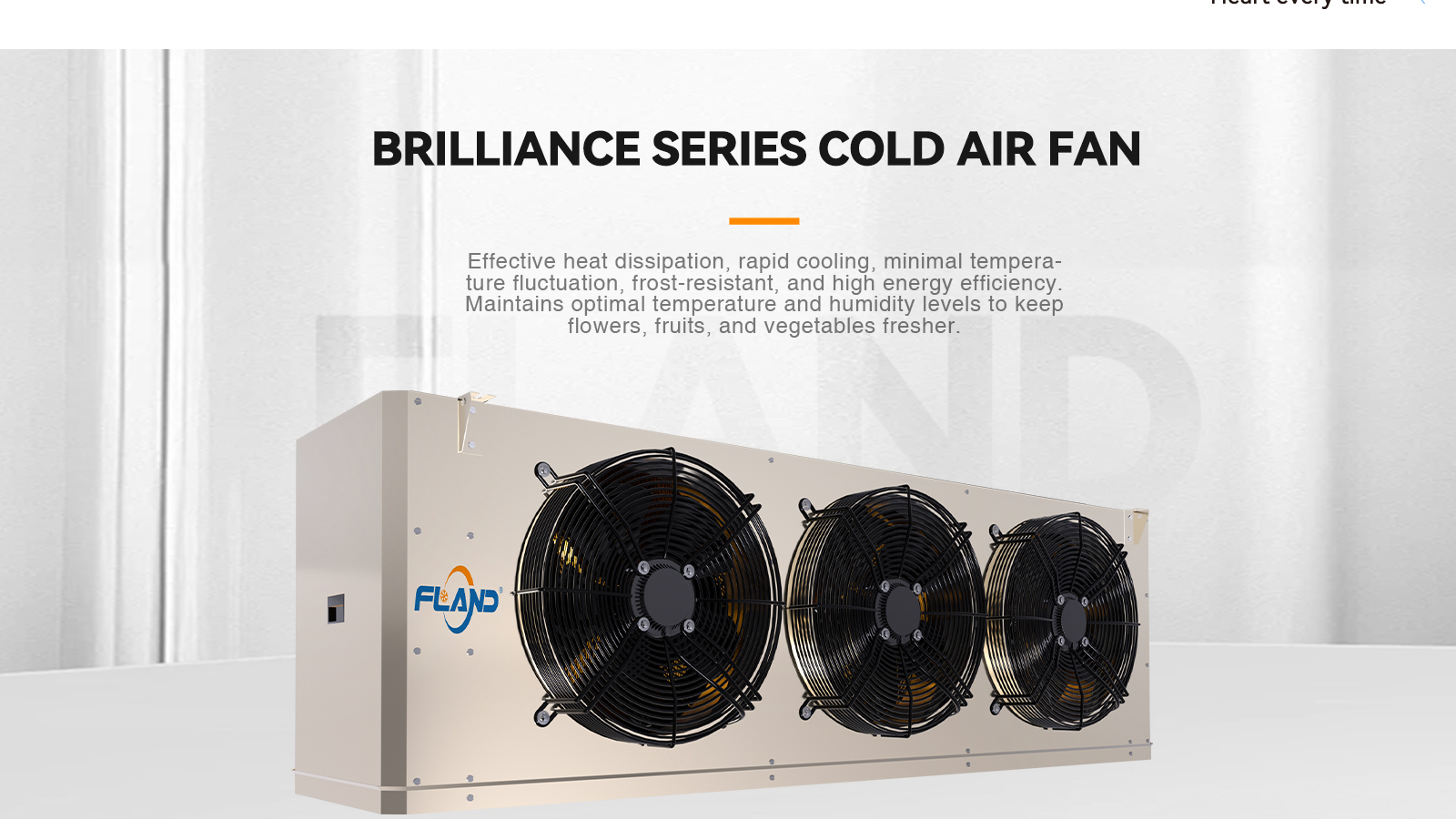

BRILLIANCE SERIES COLD AIR FAN

Effective heat dissipation, rapid cooling,minimal temperature fluctuation,frost-resistant, and high energy efficiency Maintains optimal temperature and humidity levels to keep flowers,fruits,and vegetables fresher.

SUPER PRESERVATIONTECHNOLOGY

Optional Fland Super Preservation Technology uses water molecule oscillation to reduce ethylene production, effectively extending the shelf life of flowers food, and other items.

• Extended preservation time.

• Maintains optimal texture of ingredients

• Minimal nutrient loss.

FLAND'S COMPREHENSIVE COLDSTORAGE ENCLOSURE SYSTEM

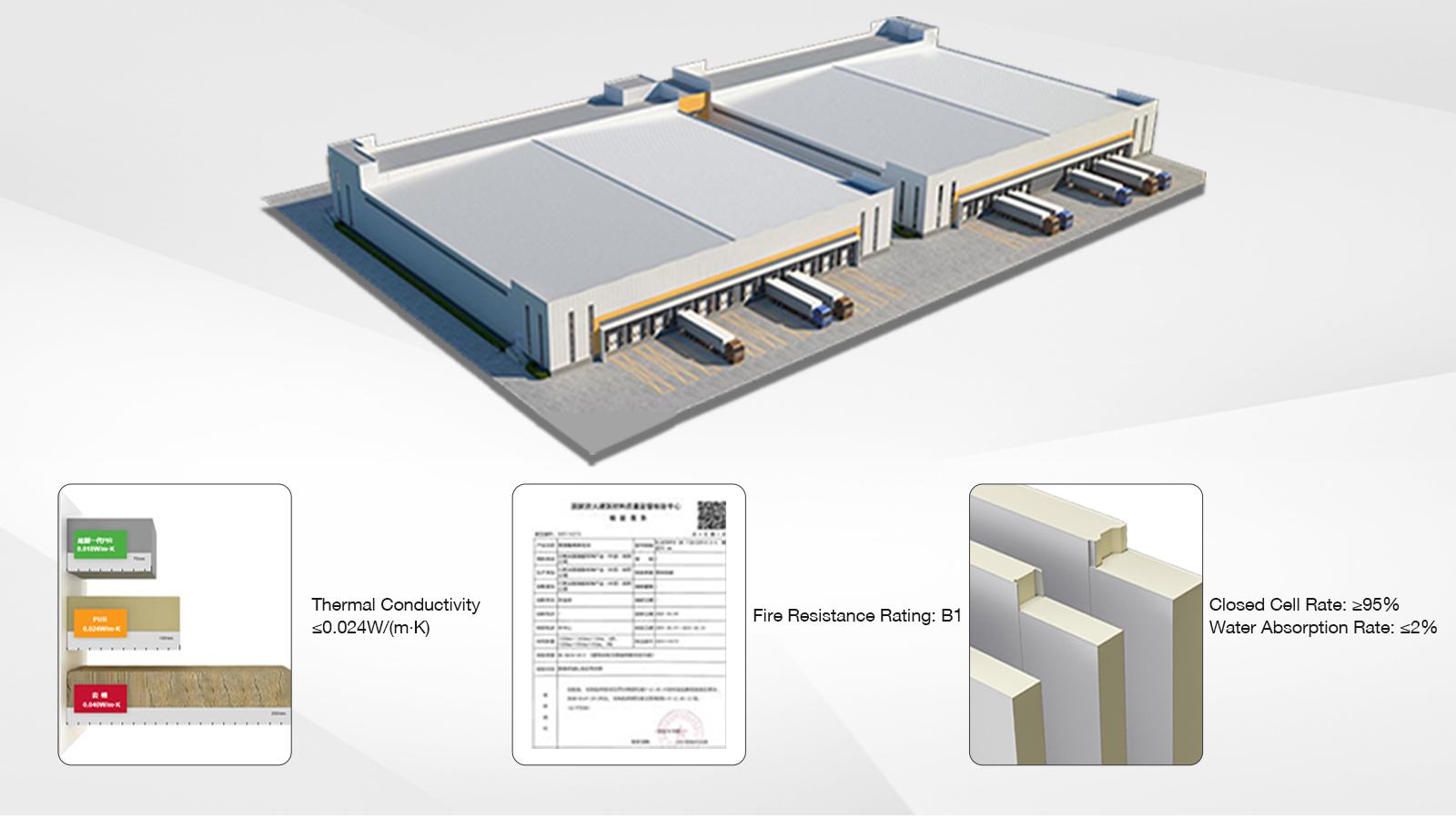

Excellent insulation with polyurethane rigid foam having a thermal conductivity of≤0.024 W/(m·K),resulting in 13%-26% energy savings.

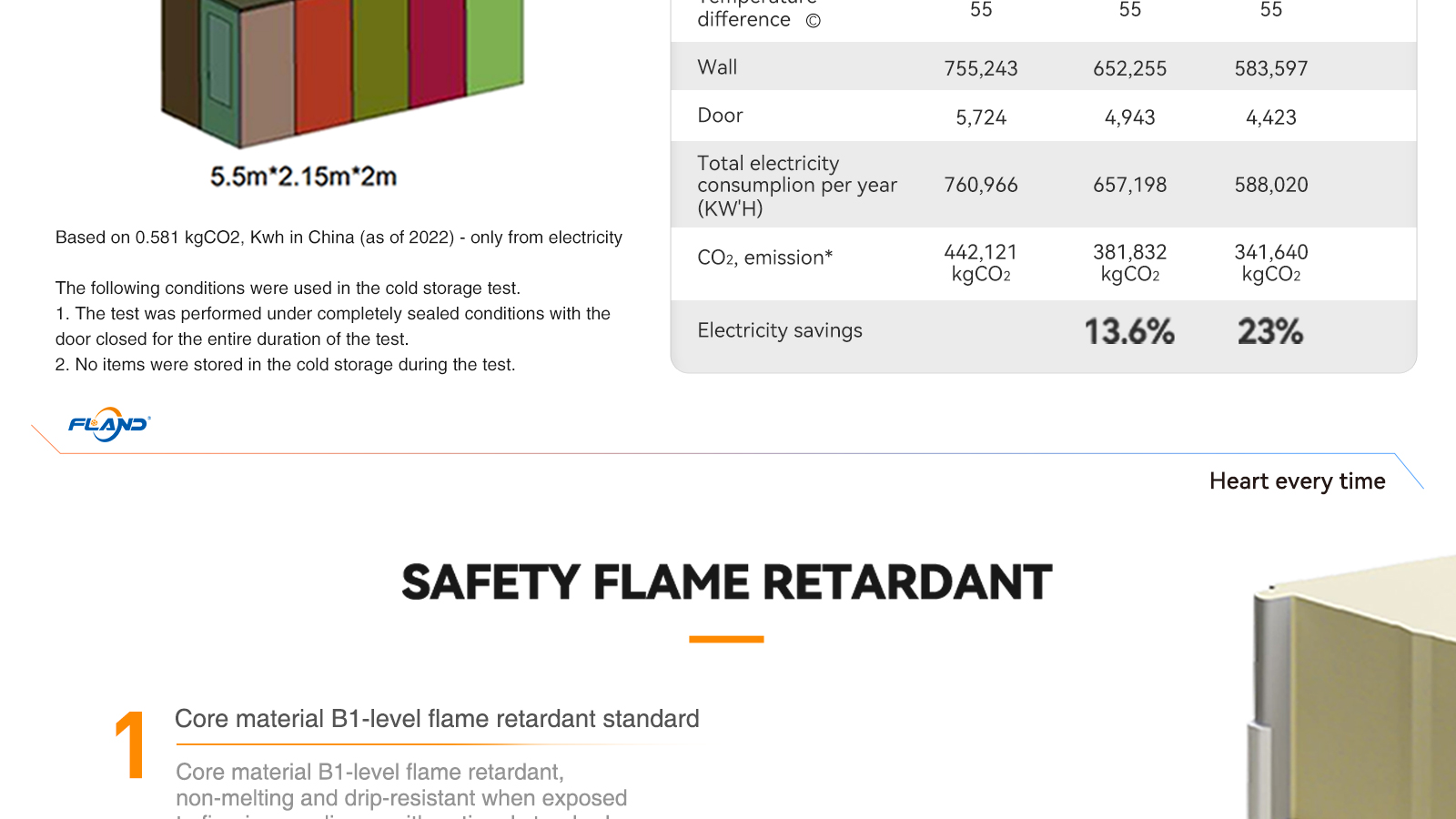

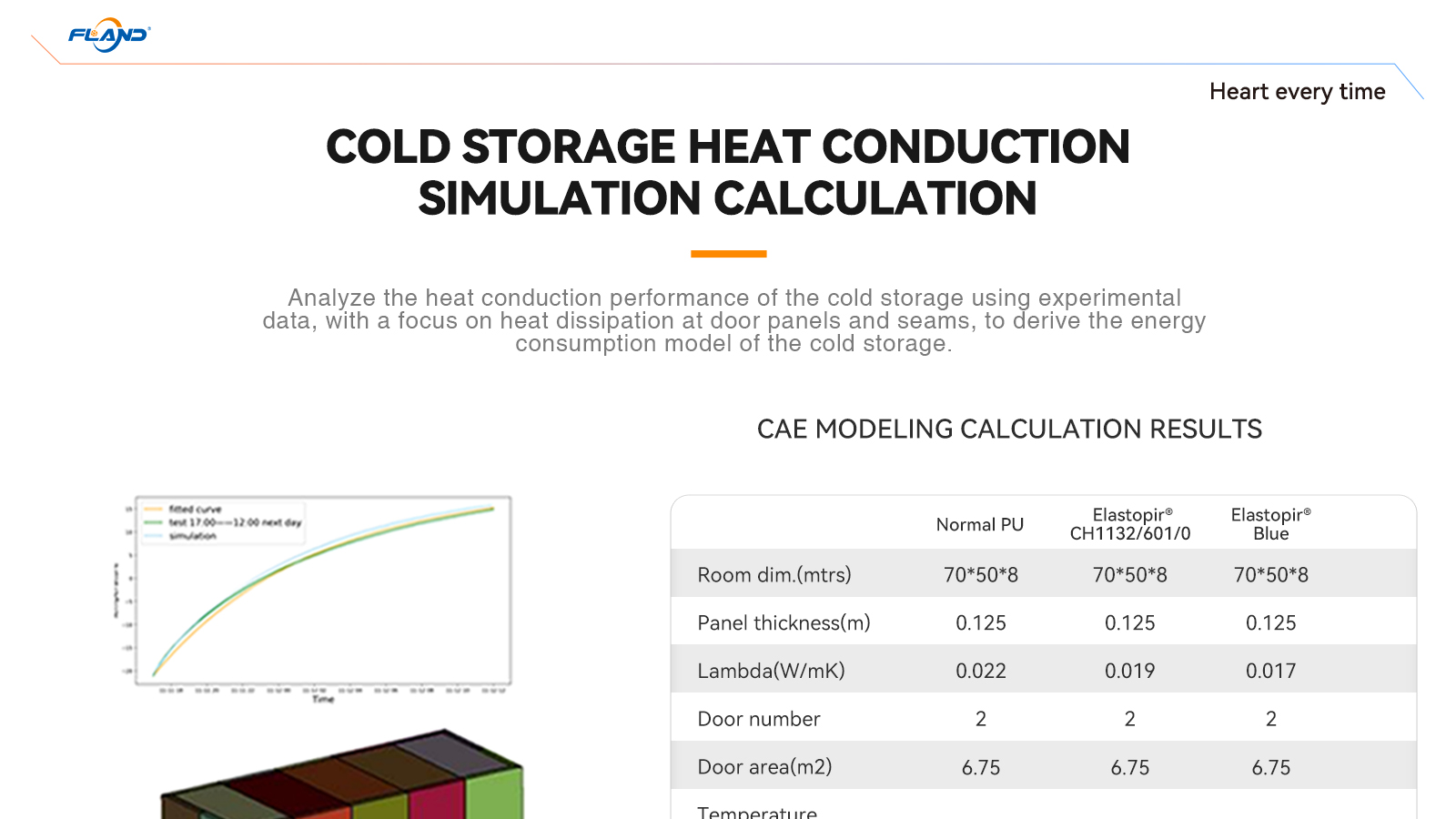

COLD STORAGE HEAT CONDUCTIONSIMULATION CALCULATION

Analyze the heat conduction performance of the cold storage using experimentaldata, with a focus on heat dissipation at door panels and seams, to derive the energyconsumption model of the cold storage.

Based on 0.581 kgCO2, Kwh in China (as of 2022)-only from electricity

The following conditions were used in the cold storage test.

1.The test was performed under completely sealed conditions with thedoor closed for the entire duration of the test.

2. No items were stored in the cold storage during the test.

CAE MODELING CALCULATION RESULTS
