Cold Room Door Types: Sliding vs Hinged vs High-Speed — Which Is Best for Your Facility?

1. Why Your Cold Room Door Choice Matters More Than You Think

Cold room doors are not just entry points — they are the single biggest source of thermal leakage in any cold storage facility. A poor door choice can increase your electricity bill by 20–35%, raise product spoilage rates, and create ongoing maintenance headaches. Whether you operate a food processing plant in Lagos, a pharmaceutical warehouse in Dubai, or a seafood cold store in Jakarta, the door you select directly impacts your operational costs and product integrity.

Most buyers make the mistake of treating the door as an afterthought — thinking "a door is a door." In reality, cold room doors are engineered thermal barriers that must balance insulation performance, mechanical durability, traffic throughput, and safety compliance simultaneously. The wrong specification can cost you thousands of dollars in retrofitting and energy waste. This guide explains every major cold room door type, compares them head-to-head, and gives you a practical framework to choose the right one for your facility.

2. Cold Room Door Types Compared

The global cold chain industry recognizes four primary cold room door categories, each engineered for a distinct operational profile. Understanding the fundamental differences will help you avoid costly mis-specifications.

2.1 Sliding Cold Room Doors (Manual & Motorized)

Sliding doors are the workhorse of industrial cold storage. They glide horizontally on a suspended track, eliminating the swing arc required by hinged alternatives. This makes them the only practical choice for doorways wider than 1,500mm, where forklifts, pallet jacks, and trolleys need unobstructed passage.

Flandcold sliding doors feature 75mm, 100mm, or 150mm polyurethane (PU) foam cores with density of 42±2 kg/m³, enclosed in 0.5mm–0.8mm stainless steel or hot-dip galvanized steel skins. The multi-lip EPDM gasket system ensures an airtight seal rated to -40°C operating conditions. Motorized versions include infrared safety sensors, anti-collision bottom rails, and optional emergency release mechanisms compliant with EN 179 standards.

Pros: Space-efficient (no swing arc), excellent for forklift traffic, superior large-opening insulation, long service life.
Cons: Requires side-wall clearance equal to door width, slower open/close cycle than high-speed doors, higher upfront material cost for wide spans.

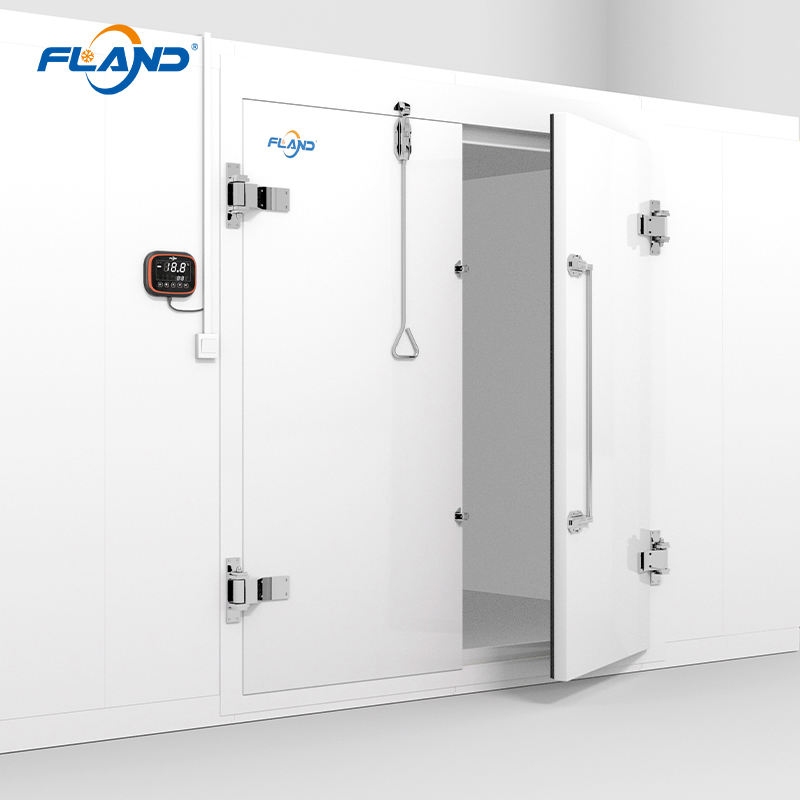

2.2 Hinged / Swing Cold Room Doors

Hinged cold room doors operate on a conventional pivot mechanism, swinging inward or outward. They are the most economical option for pedestrian-only access, personnel corridors, and smaller cold rooms under 10 m² where a sliding track would be over-engineered. Flandcold manufactures hinged doors with heavy-duty stainless steel hinges rated for 200,000+ open/close cycles, recessed cam-lift handles, and replaceable magnetic gasket inserts.

These doors are commonly specified for restaurant walk-in coolers, medical sample storage, and laboratory cold rooms. The standard panel thickness is 75mm or 100mm, with an optional 150mm version for freezer applications down to -25°C. A key advantage is that hinged doors can be fitted with vision windows (double-glazed, argon-filled, heated glass) for visibility without opening.

Pros: Lowest cost per unit, simple installation, compact footprint, readily available replacement parts.
Cons: Requires clear swing arc (approx. 900–1,200mm), not suitable for forklift passage, gasket wear accelerates with frequent use.

2.3 High-Speed Rapid Cold Room Doors

High-speed rapid doors are purpose-built for temperature-critical zones where every second of air exchange matters. These doors open and close at speeds of 1.5–2.5 meters per second, reducing the time the thermal barrier is breached by up to 80% compared to conventional sliding doors. They are heavily used in food processing lines, cold chain logistics cross-docks, and pharmaceutical cleanrooms where ISO Class 7–8 air quality must be maintained.

Flandcold high-speed doors use flexible PVC curtain panels reinforced with polyester webbing, guided by self-lubricating PE tracks. The servo-driven motor includes a variable frequency drive (VFD) for soft-start/stop operation, extending curtain life beyond 1 million cycles. Integrated photocell safety edges, radar motion sensors, and magnetic loop detectors ensure safe, automated operation in busy logistics environments.

Pros: Fastest cycle time (1.5–2.5 m/s), minimal air infiltration, automated traffic flow, excellent for hygiene-sensitive zones.
Cons: Higher initial investment (USD 3,500–8,000 depending on size and features), PVC curtain requires periodic replacement, lower insulation R-value than rigid PU panels.

2.4 Glass Display Cold Room Doors

Glass cold room doors serve a dual purpose: insulation and merchandising. Found in supermarket freezer aisles, convenience store beverage coolers, and restaurant walk-in display units, these doors use double- or triple-glazed low-E glass panels with argon gas fill to achieve U-values as low as 1.1 W/m²·K. The glass is tempered for safety and can include an electrically heated inner pane to prevent condensation fogging.

Flandcold glass doors are custom-fabricated with aluminum alloy frames, integrated LED lighting channels, and optional anti-fog coating. Frame heating (24V DC low-voltage system) prevents ice formation around the glass perimeter in freezer applications. Hinge mechanisms are concealed for a clean, premium aesthetic suitable for customer-facing retail environments.

Pros: Product visibility drives impulse sales, premium retail aesthetic, heated glass eliminates fogging, low-voltage safe operation.
Cons: Higher cost than opaque doors, lower insulation than PU-core panels, requires periodic cleaning to maintain transparency, glass breakage risk in high-impact zones.

3. How to Match Door Type to Your Operation

Selecting the right door requires evaluating three operational factors simultaneously: traffic profile, available physical space, and target temperature zone.

3.1 Traffic Profile

Low traffic (<100 cycles/day): Hinged doors are sufficient. Maintenance costs stay low, and the insulation performance is excellent for static storage environments such as long-term frozen goods warehousing.

Medium traffic (100–500 cycles/day): Sliding doors with reinforced track rollers. If forklifts account for more than 30% of these cycles, a motorized sliding door with remote control or induction-loop activation is strongly recommended to reduce operator fatigue and door damage.

High traffic (>500 cycles/day): High-speed rapid doors are the only practical solution. At this throughput, conventional hinged or sliding doors become a bottleneck, causing temperature fluctuations that can exceed 3–5°C per hour in the buffer zone, accelerating compressor runtime and energy costs by 15–25%.

3.2 Space Constraints

Measure your available wall space carefully. A sliding door needs unobstructed wall length equal to the door opening width on one side. If you have a 3-meter opening but only 2 meters of side wall, a sliding door will not fit — consider a bi-parting sliding configuration (two panels splitting from center) or a high-speed roll-up door instead. Hinged doors need clear floor space for the swing path; ensure no racking, pipework, or equipment sits within the arc radius.

3.3 Temperature Zone

Chiller rooms (+0°C to +8°C): 75mm PU panel doors with standard EPDM gaskets are adequate. Heated frames are optional but beneficial in high-humidity tropical climates.

Freezer rooms (-18°C to -25°C): 100mm minimum PU panel thickness, heated door frame strongly recommended. The frame heater prevents frost welding between the door gasket and frame, which can tear gaskets upon forced opening and compromise the seal.

Blast freezers (-30°C to -40°C): 150mm PU panels, mandatory heated frame, double-gasket labyrinth seal, and pressure relief port to prevent vacuum lock after rapid temperature drops.

4. Key Technical Specifications Explained

Beyond door type, several technical specifications directly determine long-term performance and total cost of ownership. Educated buyers should understand each parameter before requesting a quotation.

4.1 Insulation Panel Thickness

The polyurethane foam core provides the primary thermal barrier. Panel thickness directly correlates with R-value:

• 75mm panel: U-value ≈ 0.25 W/m²·K — suitable for chillers (+0°C to +8°C storage)
• 100mm panel: U-value ≈ 0.20 W/m²·K — suitable for freezers (-18°C to -25°C)
• 150mm panel: U-value ≈ 0.15 W/m²·K — suitable for deep freezers and blast freezers (-30°C to -40°C)

Thicker panels increase door weight, requiring heavier-duty hinges, track rollers, and structural framing. Flandcold pre-engineers each door assembly with the appropriate hardware for the specified thickness.

4.2 Heated Door Frame

The heated frame is a low-wattage resistive heating element embedded in the door frame profile. It maintains the frame surface temperature 2–3°C above the dew point, preventing condensation from freezing into ice that can lock the door shut. In freezer environments, a heated frame is the difference between reliable operation and daily ice-chipping. Flandcold heated frames operate on 220–240V AC at 80–150W, consuming approximately 2–4 kWh per day — far cheaper than the alternative of replacing frozen-shut gaskets every 6–12 months.

4.3 Emergency Release Mechanism

Safety standards (EN 179, ANSI/BHMA A156) require that cold room doors be operable from the inside without a key or tool. Flandcold equips all freezer-rated doors with a glow-in-the-dark internal release handle that mechanically disengages the latch even if the door is iced. For motorized sliding doors, a battery-backed emergency release disengages the drive motor, allowing manual push-open operation.

4.4 Surface Material and Hygiene

Food-grade applications (meat processing, dairy, seafood) require stainless steel skins (SUS304 or SUS316L) with smooth, crevice-free surfaces that withstand daily washdown with chlorinated cleaning agents at pressures up to 25 bar. Galvanized steel with epoxy powder coating is a cost-effective alternative for dry storage and non-food applications.

5. Five Mistakes Buyers Make When Choosing Cold Storage Doors

Mistake 1: Ordering doors without measuring forklift dimensions. A 1,200mm-wide hinged door cannot accommodate a standard 1,000mm-wide pallet carried by a forklift. Always specify clear opening width and height based on your largest load vehicle, not your storage racks.

Mistake 2: Skipping heated frames for freezer doors. In tropical and subtropical climates, the temperature differential between -20°C inside and +35°C outside creates condensation that freezes instantly on the cold side of the door frame. Within weeks, ice buildup can warp the frame and tear gaskets. The USD 150–300 premium for a heated frame is the cheapest insurance you can buy.

Mistake 3: Choosing based on unit price alone. A hinged door at USD 800 may look attractive, but if it causes 30% more compressor runtime due to longer open times compared to a high-speed door, the additional electricity cost of USD 400–800 per year (at USD 0.12/kWh) will erase any savings within the first two years.

Mistake 4: Ignoring floor conditions. Sliding doors require a perfectly level bottom rail or track channel. If your concrete floor has a gradient greater than 2mm per meter, the door will bind, rollers will wear unevenly, and the bottom seal will have gaps. Either level the floor during construction or specify a top-hung sliding door with a recessed floor channel.

Mistake 5: Not accounting for future expansion. If you plan to increase cold storage capacity within 3–5 years, size your door openings for future traffic volumes. Retrofitting a wider door is far more expensive than installing the correct size initially — the cost difference is typically only 15–25% upfront versus 200–300% for a retrofit.

6. Quick Selection Checklist

Use this checklist to confirm your door specification before ordering. If you answer "No" to any question, consult your supplier for a revised specification.

7. Why Source Your Cold Room Doors from Flandcold

Flandcold (富澜德) is one of China's most trusted cold chain equipment manufacturers, with over 60 proprietary patents and a 45,000-square-meter production base in Xiaoxian, Anhui Province. Our cold room doors are engineered, tested, and certified to international standards including NSF, CE, and UL — giving overseas buyers in the Middle East, Southeast Asia, Africa, and Latin America confidence in product quality and regulatory compliance.

What sets Flandcold apart:

• Factory-direct pricing: No distributor markup. You deal directly with the manufacturer, saving 20–35% compared to trading-company sourcing.
• Full door range: Sliding, hinged, high-speed, and glass display doors — all with 75/100/150mm PU insulation options and heated frame configurations.
• Certification package: CE, UL, NSF, ISO 9001:2015 documentation provided with every shipment for hassle-free customs clearance.
• Global service network: 3,600+ service partners worldwide ensure after-sales support, spare parts availability, and installation guidance in your region.
• Smart monitoring: Our ICOLD cloud platform enables remote temperature monitoring, door cycle counting, and predictive maintenance alerts — reducing unplanned downtime by up to 40%.
• Custom engineering: Non-standard dimensions, special material requirements (SUS316L, aluminum alloy), and integrated wicket doors are all available.

Whether you need a single walk-in cooler door for a restaurant project or 500 high-speed doors for a multi-site cold chain logistics network, Flandcold delivers consistent quality, on-time shipment, and complete technical documentation in English, Arabic, French, and Spanish.
