Glass Door Cold Room Condensation Problems: 5 Real Causes and How to Fix Them

Introduction — When Your Glass Door Hides Products Instead of Showing Them

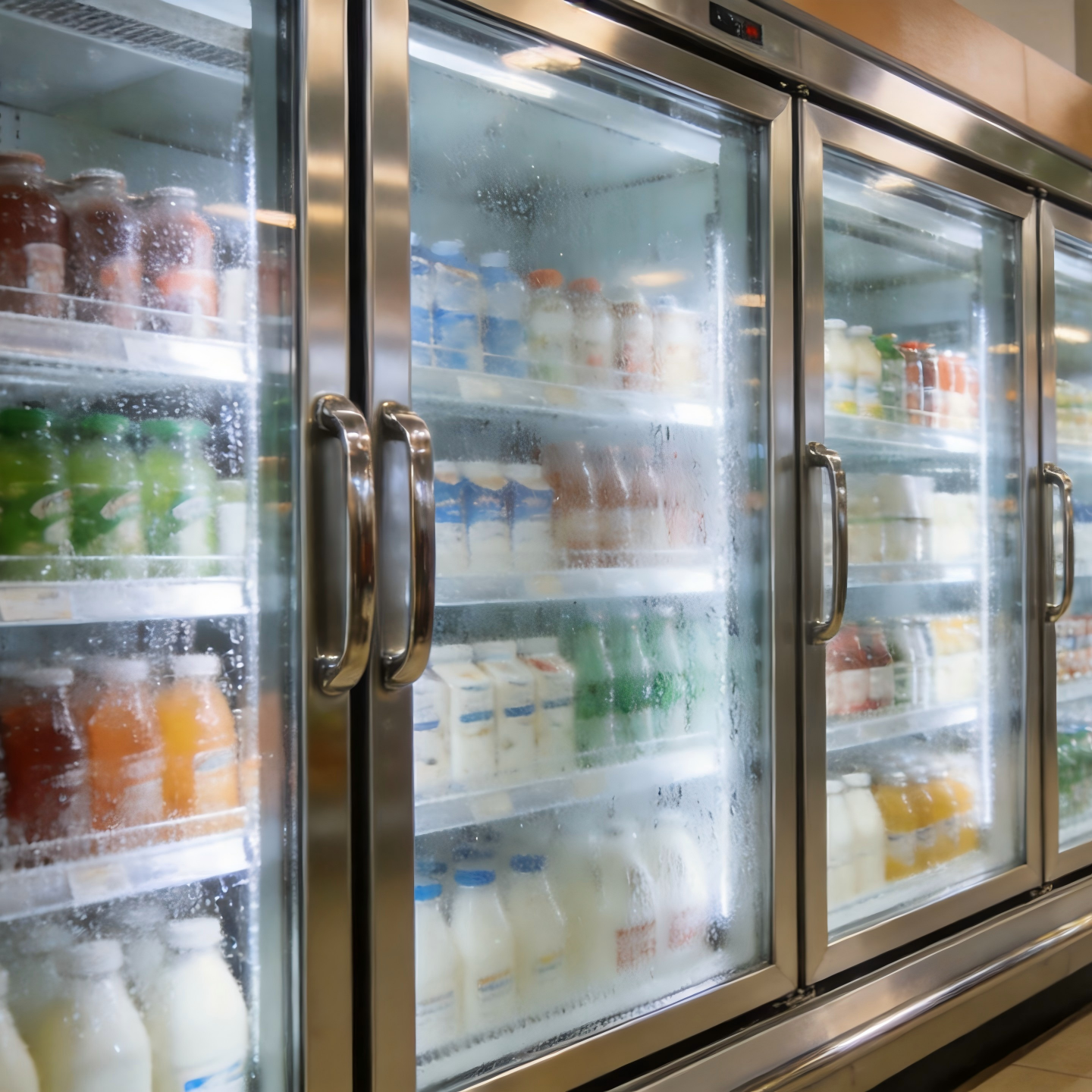

A glass door cold room is designed to do one job above all else: let shoppers see your products. The moment those doors fog over, you're no longer selling beverages, dairy, or packaged foods — you're selling mystery boxes. In a competitive retail environment, that's a conversion killer.

Glass door cold room condensation is one of the most frequently reported complaints from supermarket and convenience store operators across the Middle East, Southeast Asia, Africa, and Latin America — regions where ambient temperatures routinely exceed 35 °C and relative humidity can climb above 80%. In these climates, standard refrigeration glass simply cannot cope.

This article identifies five real, root-cause reasons why your display cooler glass door keeps fogging up, explains the physics behind each, and provides actionable solutions — including how Flandcold's purpose-built anti-condensation technology permanently eliminates the problem.

Cause #1: High Ambient Humidity

How It Works

When the relative humidity (RH) in your store rises above approximately 60–65%, the dew point of the ambient air climbs to a temperature very close to the surface temperature of your cold room door glass (typically 2–8 °C for a standard chiller). The moment the glass surface temperature drops below that dew point, water vapor in the air precipitates as liquid droplets — the classic fogging effect operators know too well.

Real-World Impact

In tropical markets — Bangkok, Lagos, Dubai in summer, São Paulo — outdoor RH regularly exceeds 75–85%. Every time a customer enters your store and the door opens, a pulse of humid air floods in. Without adequate countermeasures, condensation builds up within minutes, obscuring merchandise and creating slip-hazard floor puddles.

The Fix

Deploy heated double-glazed or triple-glazed glass doors that maintain an outer glass surface temperature above the ambient dew point. Pair this with in-store dehumidification or proper HVAC management. Flandcold's doors integrate a low-wattage resistive heating element within the glass laminate, raising the outer surface temperature by 10–15 °C above baseline — enough to stay above the dew point even at 85% RH.

Cause #2: Temperature Differential Too Large

How It Works

Even in moderate-humidity environments, an extreme temperature gap between the store interior (e.g., 28 °C) and the cold room interior (e.g., −2 °C) creates a steep thermal gradient across the door glass. The outer glass face can reach temperatures well below the dew point of ambient air, triggering condensation. The larger the ΔT, the higher the risk — and the more aggressive the heating requirement.

Real-World Impact

This is a common issue when stores cut corners on HVAC or when an outdoor market kiosk uses an indoor-spec cold room. The refrigeration unit works perfectly, but the glass door becomes a radiator of moisture. Product visibility drops, and frost can form inside the door frame, forcing expensive maintenance cycles.

The Fix

Specify cold room doors with low-E (low-emissivity) double or triple glazing to reduce the thermal conductivity of the glass assembly. A proper low-E insulating glass unit (IGU) can cut effective U-value by 50–70% compared to single glass, dramatically reducing the outer-surface temperature drop. Combined with frame thermal breaks, this is the engineering solution — not simply "turn up the heating wire."

Cause #3: Failed or Aging Door Gaskets

How It Works

The magnetic TPE (thermoplastic elastomer) gasket that runs around the perimeter of a cold room glass door performs two critical functions: it seals warm ambient air out and cold air in. When gaskets harden, crack, compress unevenly, or lose magnetic retention force, small infiltration gaps form. Warm, humid store air bleeds into the cold zone and contacts the much colder internal glass surface — producing heavy interior condensation and frost buildup that customers may incorrectly assume is a refrigeration failure.

Real-World Impact

A failed gasket increases infiltration heat load by 15–30%, forcing the compressor to work harder, raising energy consumption, and — critically — creating the persistent condensation that signals the problem to an alert operator. Gasket failures are disproportionately common in high-traffic environments where doors are opened hundreds of times daily.

The Fix

Inspect gaskets quarterly. Look for visible cracks, loss of flexibility, or a "light gap" test result (place a flashlight inside the closed cold room and look for light leakage around the frame). Replace immediately when degradation is found. Flandcold uses high-density TPE gaskets with strong magnetic retention, rated for 200,000+ open/close cycles, significantly outperforming standard PVC gaskets used by budget manufacturers.

Cause #4: Inadequate Anti-Fog Heating System

How It Works

Most modern cold room glass doors include some form of electrically heated glass — but not all heating systems are created equal. Under-specified heating wire grids, incorrect wattage density, or failed heating elements create cold spots on the glass surface where condensation can still form locally. Even if 90% of the glass surface is clear, a cold band at the glass edge or a dead zone from a broken circuit is enough to trigger visible fogging that alarms customers.

Real-World Impact

Operators in humid equatorial climates (RH > 75%) who relied on standard "anti-fog glass" from low-cost suppliers frequently report continued fogging within 6–18 months as heating elements degrade or prove undersized for local conditions. The fix — retrofitting heating glass — is costly and disruptive.

The Fix

Specify doors with precisely engineered heating circuits matched to the target climate. The wattage density (W/m²) of the heating element must be calculated based on the worst-case ambient dew point for the installation market, not a temperate-climate default. Flandcold engineers size the anti-fog heating circuit for the customer's specific deployment country, ensuring the outer glass surface stays 8–12 °C above local maximum dew point year-round.

Cause #5: Poor Airflow and HVAC Interaction

How It Works

A frequently overlooked cause of glass door cold room condensation is the interaction between the cold room door and the store's broader HVAC and airflow patterns. Warm air supply vents or ceiling fans directing humid air directly at cold room door faces dramatically increase condensation rates — essentially blowing more moisture onto the cold surface than the heating system can cope with. Similarly, poor in-store air circulation can create stagnant high-humidity pockets immediately in front of the cold room displays.

Real-World Impact

In convenience stores with small footprints, the cold room display wall often sits directly below or adjacent to the main air conditioning supply vent. AC units in tropical climates cycle on and off, alternately blowing dry and humid air. This intermittent high-humidity airflow pulsing against the glass creates cyclic condensation — appearing and disappearing unpredictably, which is difficult to diagnose without HVAC analysis.

The Fix

Conduct an in-store airflow audit before specifying cold room placement. Ensure AC supply vents are not directed at cold room doors. Install anti-condensation strips or airflow deflectors if repositioning is not possible. For large installations, consider a separate dehumidification circuit for the cold zone perimeter. Flandcold's technical team provides pre-installation layout consultation as part of project delivery to avoid this systemic issue.

Cause–Symptom–Solution Reference Table

Flandcold's Anti-Condensation Solutions: Built for Humid Climates

Flandcold (富澜德冷链装备) designs and manufactures glass door reach-in cold rooms specifically engineered for the most demanding tropical and subtropical markets. Every door assembly shipped from our factory integrates multiple condensation-prevention technologies working in concert — not as individual add-ons.

What Sets Flandcold Doors Apart

• Anti-Fog Heated Glass (Climate-Matched): Heating circuit wattage is calculated per destination country, ensuring outdoor glass surface temperature stays above local dew point in worst-case seasonal conditions. Available in double-pane and triple-pane configurations.
• Premium TPE Magnetic Gaskets: High-density TPE compound maintains elasticity down to −40 °C and rated for 200,000+ cycles. Magnetic retention tested at 2× industry minimum, ensuring a positive seal every closure.
• Low-E Insulating Glass Units (IGU): Argon-filled double and triple-pane units with low-emissivity coating reduce thermal conductivity, dramatically lowering outer glass surface temperature drop and reducing heating energy consumption by up to 30%.
• Precision Temperature Control: Integrated electronic controllers maintain ±0.5 °C set-point accuracy, preventing unnecessary temperature oscillations that exacerbate condensation cycles.
• Pre-Installation Technical Consultation: Flandcold's engineering team reviews store layout, local climate data, and HVAC plans before delivery — catching airflow and humidity issues before they become fogging problems.

With 60+ patents and certifications including NSF CE UL ISO, Flandcold products meet international retail standards for food safety, electrical safety, and energy efficiency — making them the specification-grade choice for regional supermarket chains and convenience store groups in the Middle East, Southeast Asia, Africa, and Latin America.
