How Long Does A Refrigerated Tricycle Take To Reach -18°C? — Full Cooling Performance Test Report

How Long Does a Refrigerated Tricycle Take to Reach -18°C? — Full Cooling Performance Test Report | Flandcold

How Long Does a Refrigerated Tricycle Take to Reach -18°C? — Full Cooling Performance Test Report

Most suppliers only claim "it can reach -18°C" but can't tell you how long. Flandcold publishes the complete cooling curve so you can plan delivery schedules before purchasing.

Sanyo C-6RHA158H1AAF Rotary Inverter Compressor 0°C to -18°C in 43 min Multi-Load Scenarios

If you've sourced refrigerated tricycles before, you've probably asked this question: "How long from startup to -18°C?" Most suppliers give vague answers — "pretty fast," "around an hour or two," "depends." None of that helps you make a purchasing decision.

Cooling speed isn't a marketing number. It directly determines what time your drivers need to start pre-cooling each morning, when they can load cargo, and how many runs they can fit in a day. It's a fundamental parameter of delivery efficiency.

Flandcold made a decision: publish the full cooling test data. Not cherry-picked highlights, but segment-by-segment, minute-by-minute recordings across indoor, outdoor high-temperature, and 25 kg / 50 kg / 100 kg loaded conditions. The core refrigeration unit is the Sanyo C-6RHA158H1AAF rotary inverter compressor, with 2,000W cooling capacity, R404A refrigerant, and a FRP + PU composite box with 70mm wall thickness.

Here's the complete test report.

1. Indoor Empty Cooling — Baseline Test

The empty-load test serves as the baseline reference for all cooling performance. Test conditions were as follows:

Initial box temperature: 23.6°C
Ambient indoor temperature: 28°C
Method: Close box door, start compressor, record time at each key temperature milestone

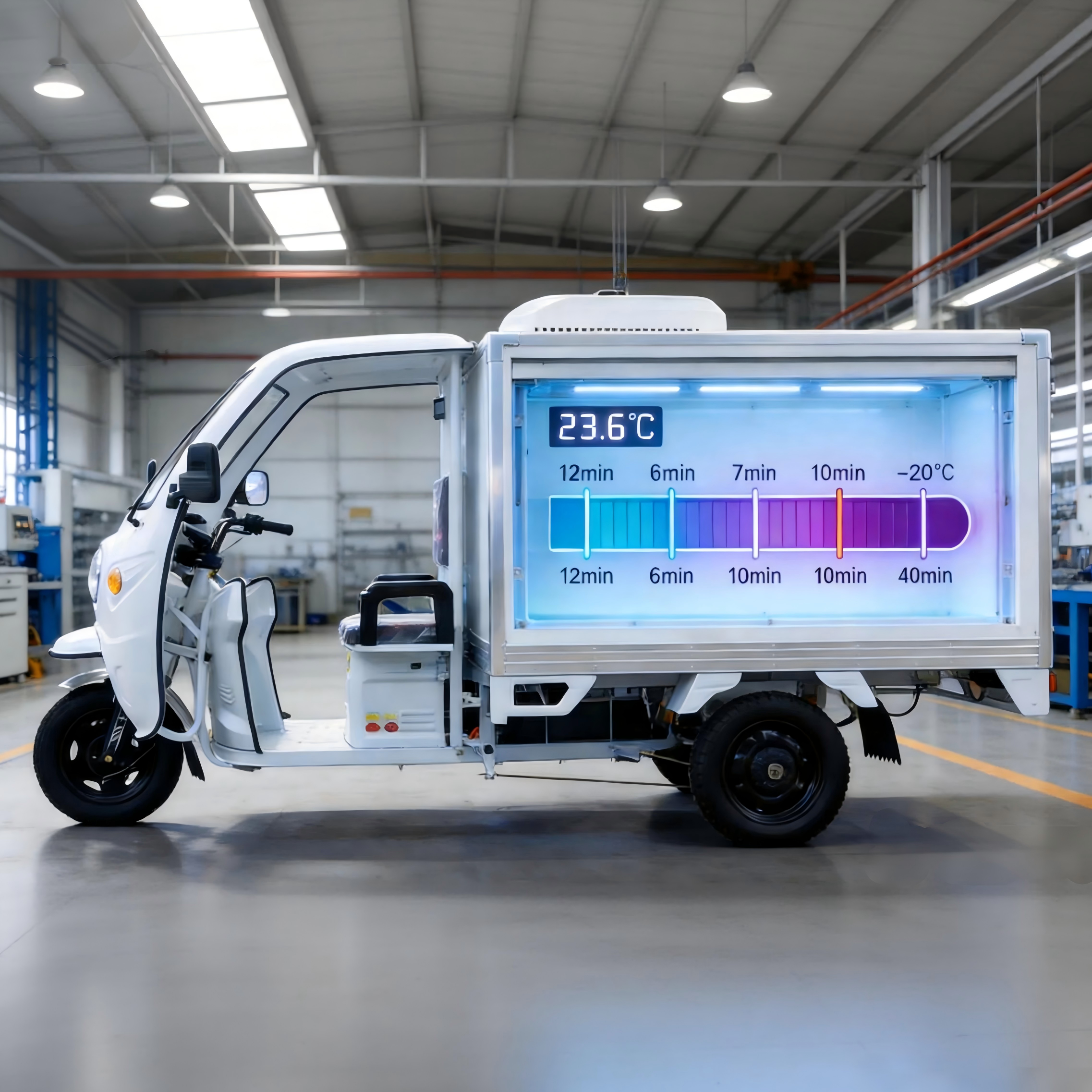

Unit: Flandcold standard 1.5m (1m³) refrigerated tricycle

Temperature Range	Segment Duration	Cumulative Time	Notes
23.6°C → 0°C	12 minutes	12 minutes	Fastest phase — large temperature differential drives high heat exchange
0°C → -5°C	6 minutes	18 minutes	Still rapid crossing the freezing point
-5°C → -10°C	7 minutes	25 minutes	Starting to slow as we enter deep-freeze territory
-10°C → -15°C	10 minutes	35 minutes	Approaching compressor limits as temperature differential narrows
-15°C → -18°C	10 minutes	45 minutes	Standard commercial cold chain target temperature
-18°C → -20°C	40 minutes	85 minutes	Extreme temperature zone — cooling efficiency drops sharply

The critical takeaway from this table is the contrast between the last two rows: going from -15°C to -18°C takes only 10 minutes, but -18°C to -20°C takes 40 minutes. This isn't a product defect — it's basic thermodynamics. The larger the temperature differential between inside and outside the box, the more heat must be removed per degree, and compressor efficiency naturally decreases.

Key Conclusion: In real-world cold chain delivery, the vast majority of frozen goods require storage at -18°C (ice cream, frozen foods, frozen meat) — not -20°C. This means the Flandcold tricycle's effective commercial cooling time is approximately 45–50 minutes — from startup to delivery-ready temperature in under an hour.

2. High-Temperature Outdoor Cooling — Middle East / Southeast Asia Scenario

For buyers in the Middle East, Southeast Asia, and Africa, an indoor baseline test is far from sufficient. Summer outdoor temperatures regularly hit 35–40°C, and a sun-exposed box can reach 40–50°C internally. We simulated a moderate high-temperature scenario — 30°C outdoors, 30°C initial box temperature — to see how much the cooling curve shifts.

Temperature Range	Indoor Test	Outdoor Sun Exposure	Difference
Start → 0°C	23.6→0: 12 min	30→0: 20 min	+8 min
0°C → -5°C	6 min	8 min	+2 min
-5°C → -10°C	7 min	10 min	+3 min
-10°C → -15°C	10 min	15 min	+5 min
-15°C → -18°C	10 min	17 min	+7 min
-18°C → -20°C	40 min	37 min	-3 min
Total (Start → -20°C)	85 min	107 min	+22 min

Several key observations from this data:

Total time increased by 22 minutes, primarily due to the higher starting temperature (30°C vs 23.6°C) affecting the early cooling phases
Mid-range segments (-5°C to -15°C) showed manageable increases of 2–5 minutes per segment
The extreme segment (-18°C to -20°C) was actually 3 minutes faster in the outdoor test, likely due to slightly better external air convection
From startup to -18°C under sun exposure took approximately 70 minutes — still within a practical range

Practical Conclusion: Even in a 30°C high-temperature environment, the Flandcold refrigerated tricycle reaches -18°C from 30°C in under 70 minutes. For more extreme environments above 40°C, we recommend allowing 1.5 hours for pre-cooling. The 70mm FRP + PU composite box construction provides critical insulation that keeps cooling efficiency high even under direct sun exposure.

3. Cooling Time Under Different Loads

Empty-load data tells you what the machine can do. Loaded data tells you what happens when you put cargo in. We used standard 1,000 ml ice packs to simulate frozen cargo, testing at 25 kg, 50 kg, and 100 kg loads.

Test Condition	Load	Start Temp	Target Temp	Cooling Time	Notes
25 ice packs	~25 kg	-15°C	-18°C	65 minutes	Goods retain residual cold but low thermal mass
50 ice packs	~50 kg	-8°C	-18°C	27 minutes	Higher starting temp, lighter load
100 ice packs	~100 kg	-15°C	-18°C	51 minutes	Full-load standard scenario

Why did the 50 kg test finish faster than the 100 kg test?

27 minutes vs 51 minutes — it seems counterintuitive until you look at the starting temperatures:

The 50 kg load started at -8°C, only 10 degrees from target, while the 100 kg load started at -15°C, just 3 degrees away. The key factor is thermal mass. The 100 kg of ice packs has twice the total heat capacity of the 50 kg load. Even with a smaller temperature differential, significantly more heat must be removed.

The 50 kg test segment data: -8°C to -10°C took just 2 minutes, -10°C to -15°C took 5 minutes, and -15°C to -18°C took 20 minutes. The first two segments were extremely fast, and the final segment was normal — this is exactly how an inverter compressor should perform: full power output when the differential is large, automatic downscaling when the differential shrinks.

Best Practice Workflow: Don't put room-temperature goods into a warm box and then start cooling — that's the most common rookie mistake. The correct approach: start pre-cooling the empty box 1.5 hours before departure. Wait until the interior stabilizes at -18°C, then load the frozen cargo. This minimizes temperature fluctuation and saves battery. If the goods are already at -18°C, loading them causes virtually no temperature swing.

4. Why the Rotary Inverter Compressor

A refrigerated tricycle's cooling performance is 70% determined by the compressor. Flandcold selected the Sanyo C-6RHA158H1AAF rotary inverter compressor — and this choice was deliberate.

Traditional Reciprocating Compressor

On/off operation — only "full power" or "off"
High startup current surge, hard on battery
Wide temperature fluctuations (±5°C or more)
Significant efficiency drop at low temperatures
Loud operation, unsuitable for residential deliveries

Sanyo 158 Rotary Inverter Compressor

Variable-speed operation, auto-adjusts to temperature differential
Soft start, low inrush current, battery-friendly
Tight temperature control (±1–2°C), better cargo protection
High efficiency even below -20°C
Quiet operation, suitable for urban and residential areas

The Sanyo C-6RHA158H1AAF is a commercially proven compressor widely used in convenience store freezers, small cold rooms, and mobile refrigeration equipment. With 2,000W cooling capacity, it's generously specified for the tricycle class. Rated power draw of 800W delivers excellent efficiency on a 60V DC system.

R404A Refrigerant — The Professional Choice for Low-Temperature Applications

Refrigerant selection directly impacts low-temperature performance. R404A has an evaporation temperature as low as -45°C, far superior to R134a (-26°C) and comparable to R22 (-40°C). For cold chain delivery requiring stable -18°C operation, R404A provides ample thermal headroom — even with ambient temperatures at 40°C, the system still has sufficient cooling margin.

5. What These Numbers Mean for Your Procurement Decision

Enough data — let's answer the practical question: after buying this tricycle, what time should your drivers start it each morning?

Delivery Scenario	Ambient Temperature	Recommended Pre-Cool	Startup Time
8:00 AM first run	20–25°C (temperate climate)	50 minutes	7:10 AM
12:00 PM midday delivery	30–35°C (tropical / summer)	80 minutes	10:40 AM
2:00 PM peak heat delivery	35–40°C (extreme heat)	100 minutes	12:20 PM
Post-loading temperature maintenance	Any	Continuous	Throughout delivery

The value of this table: you can build your delivery schedule before purchasing. No more "let's try and see" after buying. With clear data backing your planning, you can precisely schedule driver departure times, charging windows, and delivery routes.

A delivery company running 10 refrigerated tricycles that saves 15 minutes of idle waiting per vehicle per day saves over 900 man-hours per year. That's real labor cost. Cooling speed isn't just a tech spec — it's a direct variable in operational efficiency.

Key Data at a Glance

Empty load 0°C → -18°C: 43 minutes (28°C indoor environment)
Sun exposure 0°C → -18°C: ~62 minutes (30°C outdoor environment)
100 kg loaded, -15°C → -18°C: 51 minutes
Extreme -20°C target: Additional 35–40 minutes; generally unnecessary for commercial delivery
Recommended pre-cooling time: 50 min (temperate), 80–100 min (high-temperature)
Core specs: Sanyo C-6RHA158H1AAF rotary inverter / 2,000W cooling / R404A / 70mm FRP + PU box

Test data doesn't lie. Flandcold chose to publish the complete cooling curve rather than cherry-picking a single impressive number for the product page. Because we know that buyers making procurement decisions need quantifiable, verifiable information.

If you're evaluating refrigerated tricycle suppliers, try asking them this: "Can you show me your cooling test data? Segment by segment, not just a total." Those who can answer are the ones who've actually done the testing.

Contact Flandcold for the complete test report PDF and product quotation. Factory visits are welcome — see the testing process with your own eyes.

Frequently Asked Questions

What's the practical difference between -18°C and -20°C for delivery?

Most frozen goods (ice cream, frozen foods, frozen meat) have a standard storage temperature of -18°C — that's the compliance threshold. -20°C just adds a 2°C safety margin. Based on Flandcold's testing, those last 2°C cost an extra 40 minutes of cooling time, which is poor ROI. We recommend -18°C as the standard operating target for daily delivery operations.

Can the battery handle both pre-cooling and the full delivery route?

The standard Chilwee 60V 58AH battery delivers 95 km range (empty, low speed) or 55 km (loaded, high speed). Pre-cooling consumes roughly 10–15% of a full charge, well within range. We recommend charging immediately after each delivery run — full charge takes approximately 7 hours.

Why not use a fixed-speed compressor? Isn't it cheaper?

A fixed-speed compressor does save roughly 200–400 USD on the purchase price, but it consumes 15–20% more electricity and allows temperature fluctuations of ±5°C — which can compromise cargo quality. The extra electricity cost alone wipes out the purchase price savings within a year. More importantly, the inverter compressor's full-power output during initial cooling significantly reduces pre-cooling time. For a fleet running multiple daily runs, that's real money saved in driver hours.

Is 70mm box thickness sufficient? Some manufacturers offer 100mm.

Insulation performance depends on material, not just thickness. Flandcold's FRP skin + PU foam core composite achieves a thermal conductivity of ~0.022 W/(m·K), making 70mm equivalent to 100mm+ of standard EPS foam. PU also has higher density and structural strength, so the box maintains its shape during long-distance shipping. Thicker isn't always better — you need the right balance between insulation and usable cargo space.
