1. Top Retail Applications for Glass Door Cold Rooms
Glass door cold rooms aren't one-size-fits-all, but in specific scenarios, they're sales boosters. Here are the five most common deployment environments worldwide:

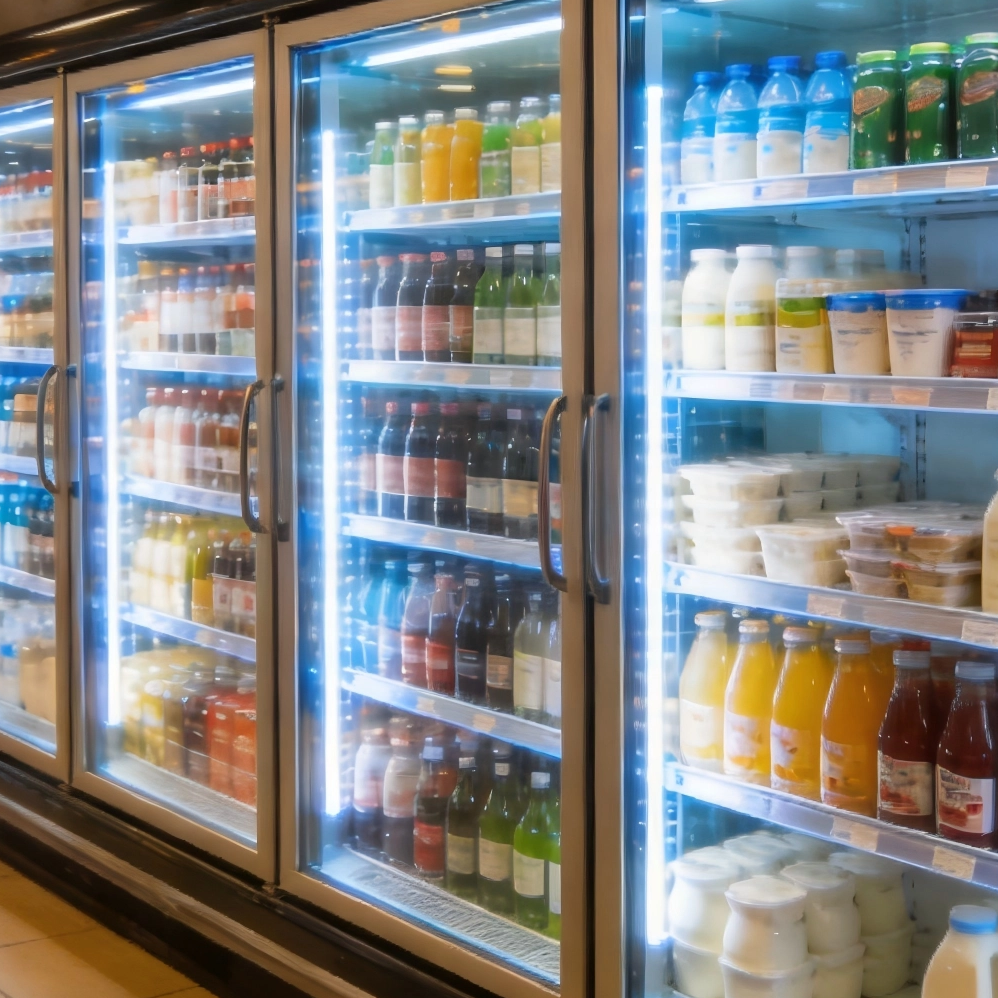

1.1 Convenience Stores & Chain Supermarket Beverage/Dairy Sections
This is the classic application. Beverages, dairy, and fresh foods are high-margin categories — customer decision time is often just 3-5 seconds. Glass doors put products in sight the moment customers walk in, dramatically shortening the "find-decide" path. 7-Eleven, FamilyMart, Lawson, Tesco Express, and similar chains operate over 200,000 stores globally, predominantly using glass door display units.
1.2 Beer Specialty Shops & Liquor Stores
Craft and imported beers require good display — customers are used to "looking before choosing." Glass door cold rooms showcase products while embedded LED lighting highlights bottle labels and brand colors, enhancing visual appeal. In Southeast Asia and Latin America, craft bars and liquor specialty stores have over 60% glass door penetration.
1.3 Ice Cream & Dessert Shops
Ice cream is an impulse purchase — seeing colorful displays naturally triggers buying desire. Glass doors accelerate browsing through flavors, reduce question-and-answer time, and increase customer throughput during peak hours.
1.4 Deli & Cooked Food Chain Stores
Deli sections need both temperature control and display. Glass doors let customers view products without opening, reducing cold air loss while keeping items fresh-looking. Zhou Hei Ya, Zeyan, and similar chains across Asia-Pacific use this setup at scale.
| Retail Scenario | Recommended Temp Zone | Recommended Size | Glass Door Advantage |
|---|---|---|---|
| Convenience Store Beverages | +2~8°C | 1-5m³ Small | Category sales +15-30% |
| Supermarket Beverage/Dairy | +2~8°C | 5-15m³ Medium | Restocking time -50% |
| Beer/Liquor Specialty | +4~10°C | 2-8m³ Small-Medium | Significant brand exposure |
| Ice Cream/Dessert Shop | -18~-22°C | 1-5m³ Small | Impulse purchase rate +25-35% |
| Deli/Cooked Food Chain | 0~5°C | 2-10m³ Small-Medium | Cold air loss -60% |
2. Glass Door vs Solid Door — Full Retail Comparison
Choosing glass or solid isn't about "expensive or cheap" — it's "worth it or not." Both have their place; the key is matching to your business goals.
2.1 Core Difference: Display Effect vs Insulation Efficiency
Solid door units theoretically have better insulation — an extra door panel means less cold air leakage. But glass door technology has matured significantly. Modern double-layer tempered glass with sealed gaskets achieves a U-value below 2.5 W/(m²·K), narrowing the gap considerably.
2.2 Inventory Visibility Advantage
For staff, the biggest benefit is "seeing stockouts at a glance." Solid door units require opening the door to check inventory, often leading to "thought we had stock, actually we didn't" situations. Glass doors make stockouts discoverable in 30 seconds versus 5-10 minutes of manual inspection.
| Comparison Dimension | Glass Door | Solid Door | Advantage |
|---|---|---|---|
| Display Effect | ★★★★★ | ★★☆☆☆ | Glass Door |
| Purchase Cost | 15-30% Higher | Baseline | Solid Door |
| Annual Energy Cost | +5~15% | Baseline | Solid Door |
| Inventory Visibility | ★★★★★ | ★★☆☆☆ | Glass Door |
| Maintenance Cost | Glass cleaning required | Gasket replacement | Tied |
| Cold Air Loss | On door opening | Theoretically minimal | Solid Door |
| Sales Promotion | ★★★★★ | ★★☆☆☆ | Glass Door |
| Security/Theft Prevention | Requires lock reinforcement | Door itself more secure | Solid Door |
3. Common Glass Door Cold Room Sizes & Specifications
Choosing the right size is key to controlling costs and maximizing efficiency. Here are the four most common size categories for retail:
3.1 Size Classification & Applications
| Size Type | Volume Range | Typical Dimensions | Best For | Glass Doors |
|---|---|---|---|---|
| Small | 1-5m³ | 1.2m × 1.2m × 1.5m | Street-side drink shops, café outdoor areas, small convenience stores | 1 panel |
| Medium | 5-15m³ | 2.0m × 2.0m × 2.0m | Convenience store main zones, mid-size supermarkets, chain pharmacies | 2-3 panels |
| Large | 15-30m³ | 3.0m × 2.5m × 2.5m | Large supermarket fresh zones, warehouse-style stores | 4-6 panels |
| Extra Large | 30m³+ | Custom dimensions | Membership stores, wholesale supermarkets, factory outlets | 6+ panels |
3.2 Choosing Door Configuration
Door configuration directly affects customer flow and space utilization. Three common options:
Front Access (Front Display)
- Most common convenience store layout
- Facing main aisle, maximum exposure
- Best for high-frequency categories (beverages, dairy)
- Recommended width: 1.2-1.8m
Side Access (Aisle Display)
- Ideal for narrow store formats
- Can serve as aisle dividers, saves space
- Easy for customers to browse while walking
- Suitable for wine, specialty condiments
Dual Access (Walk-Through)
- Open on both sides, ideal for island layouts
- Maximizes floor space utilization
- Best for supermarket center floor displays
- Requires dual-direction LED lighting design
4. ROI Calculation — How Long to Recoup Glass Door Investment
This is the key question for procurement decisions: How long until the additional cost is recovered through sales increases?
4.1 Cost Increment Analysis
| Cost Item | Solid Door (5m³) | Glass Door (5m³) | Difference |
|---|---|---|---|
| Purchase Cost | ~USD 3,500 | ~USD 4,200-4,600 | +USD 700-1,100 |
| Annual Energy Cost | ~USD 900/year | ~USD 950-1,040/year | +USD 50-140/year |
| Maintenance (5 years) | ~USD 200 | ~USD 300 | +USD 100 |
| 5-Year Total Cost Delta | USD 4,600 | USD 5,650-6,000 | +USD 1,050-1,400 |
4.2 Sales Increment Estimates
Actual sales lift depends on category and location. Here are global retail research benchmarks:
- Convenience store beverages: Glass display lifts category sales by 15-30%
- Dairy/refrigerated section: Shorter decision time, purchase volume + 20-40%
- Ice cream/dessert: Impulse purchase rate + 25-35%
- Beer/liquor: Brand exposure converts to + 10-20% average order value
4.3 Mid-Size Convenience Store ROI Example
| Calculation Item | Value | Notes |
|---|---|---|
| Investment Premium (one-time) | USD 1,000 | Glass vs solid door price difference |
| Annual Energy Increment | USD 100/year | +5~15% energy difference |
| Daily Cold Category Sales (baseline) | USD 500/day | Cold chain category |
| Sales Lift from Display | +25% | Industry mid-range benchmark |
| Annual Sales Increment | USD 45,625/year | USD 500 × 25% × 365 days |
| Annual Net Gain | USD 45,525/year | Annual increment - energy increment |
| Payback Period | ~8-10 days | Real figure slightly longer with maintenance |
Of course, calculations vary by category and store location. But the core conclusion holds: The glass door premium is fully recoverable within 1-2 years through sales increases, after which it's pure annual profit.
5. Selection Guide — When to Recommend Glass Door, When Not To
Glass door cold rooms are great, but not for every scenario. Here's the field-validated recommendation matrix:
Recommended Scenarios
- Convenience store beverages: High-frequency category, display lift has immediate impact
- Chain supermarket display zones: High foot traffic, diverse categories, display amplifies returns
- Beverage/tea specialty shops: Visual impact directly influences customer choice
- Ice cream/dessert shops: Impulse category, display is marketing
- Beer/liquor specialty stores: Brand value conveyed through presentation
- Pharmacy/health supplement stores: Cold-chain products need visible credibility
- Premium fresh produce shops: Imported meat, fish, and shrimp need transparent display
Not Recommended Scenarios
- Pure storage cold rooms: No display needed, just maximum insulation efficiency
- Logistics transit warehouses: High-frequency door opening, bulk in/out, glass damage risk
- Back-kitchen prep areas: Staff operate frequently, solid doors more durable
- High-temp/humid areas (no A/C): Glass fogging severely impacts display
- Extremely budget-constrained small shops: ROI doesn't pencil out, prioritize basic cooling first
- Frequent heavy loading/unloading: Forklifts risk bumping and cracking glass
5.1 Hybrid Strategy — The Optimal Combination
For larger retail spaces (mid-size supermarkets, warehouse stores), the optimal approach is a hybrid strategy:
Front Display Zone: Glass Door Units
Customer-facing, for high-frequency categories, maximizing sales promotion
Back Storage Zone: Solid Door Units
For backup inventory storage, maximizing insulation efficiency and minimizing energy use
Smart Linkage: Inventory Visibility System
Front glass door zone equipped with ICOLD smart temperature control, real-time stock monitoring, back zone auto restock alerts
6. Frequently Asked Questions
Key Takeaways
- Glass door cold rooms are designed to SELL, not just STORE. If your business needs retail display appeal, they're the top choice; if you only need storage, solid doors are more economical.
- ROI payback typically ranges 8-18 months, far shorter than unit service life — making it a solid investment.
- Size selection depends on category count and store layout: small convenience stores → 1-5m³; mid-size supermarkets → 5-15m³; large format → 15m³+.
- Hybrid strategy is optimal: glass door for display zones, solid door for storage zones, maximizing both efficiency and returns.
- Flandcold provides full-service support from selection planning to installation, with 3,600+ global service points.
If your business involves retail display, Flandcold offers end-to-end customization — from store dimension surveys to installation — tailored to your category mix and space requirements. Our modular glass door cold rooms feature flexible door configurations, multiple size options, and optional ICOLD smart temperature control to boost your retail performance.
