Cold Room Door Frame Heater 101: How Anti-Freeze Heating Cables Work and How to Choose

If you manage a freezer room operating below 0 °C and have ever watched your staff pry open a door sealed shut by ice, you already understand the problem. Frost accumulation at the door frame is not just an inconvenience — it damages gaskets, strains hinges, and forces compressors to work harder. The solution is deceptively simple: a door frame heater. Yet many buyers of cold storage equipment overlook this component until it is too late.

This guide explains how anti-freeze heating cables work, the three main types on the market, how to spec the right heater for your cold room, and why sourcing a pre-integrated heated door from a manufacturer like Flandcold can save you significant retrofit costs.

What Is a Cold Room Door Frame Heater — and Why You Can't Skip It

A door frame heater is a resistive heating element installed inside the metal frame of a cold room door. Its job is to maintain the frame surface at a temperature slightly above the dew point of ambient air, typically between 5 °C and 15 °C, so that moisture in the surrounding environment does not freeze against the cold frame.

Without this heat, the temperature differential between a -18 °C freezer interior and a +30 °C tropical warehouse creates a "cold bridge" through the aluminum or steel door frame. Warm warehouse air contacts the chilled metal, and the moisture it carries condenses and freezes almost instantly. Within hours, you get a rim of ice that can seal a door shut with several hundred kilograms of adhesion force.

Frame heaters are standard on virtually all freezer-grade doors (for rooms operating below 0 °C). They are less common on chillers (0 °C to +5 °C) but are still recommended in humid climates.

How Heating Cables Prevent Ice Buildup — The Science Explained

The mechanism relies on a straightforward principle of thermodynamics: Joule heating. When electric current passes through a conductor with resistance, the electrical energy converts to thermal energy. The heating cable generates enough watts per linear meter to offset the heat loss through the door frame to the cold interior.

Think of the door frame as a thermal battleground. On one side, cold air at -18 °C constantly pulls heat through the metal. On the other side, warm ambient air deposits moisture. The heating cable sits directly in the frame channel and continuously radiates heat outward, keeping the frame surface warm enough that condensation either does not form or evaporates before it can freeze.

The power density required depends on three factors:

• Temperature differential (ΔT): A -35 °C blast freezer needs roughly 2–3 times the wattage of a -15 °C holding freezer.
• Frame material and thickness: Aluminum frames conduct heat faster than steel and need slightly higher wattage.
• Ambient humidity: In tropical ports or monsoon regions, more moisture is available to condense, demanding more heating capacity at the seal line.

A typical freezer door frame heater runs at 15–40 W/m, controlled by a thermostat set between 5 °C and 15 °C. When the frame surface reaches the set point, the thermostat cuts power. When it drops below, power resumes. This on-off cycling keeps energy consumption minimal — usually 150–400 kWh per year for a standard single-leaf freezer door.

Types of Door Frame Heaters — Silicone vs PTFE vs Self-Regulating

Not all heating cables are built the same. The three types you will encounter in commercial cold room applications each have distinct advantages. The comparison table below covers the most important selection criteria.

Which type should you pick?

Silicone rubber cables dominate the market because they balance cost, flexibility, and adequate performance for most freezer applications. They are the standard choice for cold rooms operating between -5 °C and -35 °C.

PTFE cables are the right call for food-processing facilities, blast freezers, or coastal cold stores where frames face frequent washdowns or salt-laden air. PTFE is chemically inert and handles repeated moisture exposure without degradation.

Self-regulating cables are ideal when a single cold room operates at different temperatures (e.g., a multi-temperature facility) or when you want to minimize wiring complexity by eliminating external thermostats. Their polymer core increases resistance as temperature rises, naturally reducing power output when less heat is needed.

How to Choose the Right Heater — Voltage, Wattage, Temperature Rating

Specifying the correct frame heater requires matching three electrical parameters and one environmental parameter to your installation.

1. Voltage

Match the heater voltage to your site electrical supply. Most installations use 220–240 V (single-phase) or 380–415 V (three-phase). Export projects to North America or parts of Southeast Asia typically require 110–120 V configurations. Confirm voltage before you order — running a 220 V cable on 110 V will produce only 25% of its rated wattage.

2. Wattage per linear meter

Use the ambient-to-room temperature differential as your guide:

• ΔT ≤ 25 °C (chillers, mild climates): 10–15 W/m
• ΔT 25–40 °C (standard freezers): 20–30 W/m
• ΔT > 40 °C (blast freezers, tropical climates): 35–50 W/m

3. Temperature rating

Ensure the cable's rated exposure temperature exceeds the highest surface temperature it will encounter, including any defrost cycle spikes. Most silicone cables handle up to 200 °C, which provides ample headroom.

4. Controller type

You can use a simple line-voltage thermostat (cheapest, $8–$15), a digital controller with a thermistor sensor (better accuracy, $25–$50), or rely on self-regulating cables (no external controller needed).

Common Heater Failures and Troubleshooting

Even well-installed frame heaters can develop problems over time. The table below covers the most frequent failures, their causes, and how to diagnose them.

A good preventive maintenance routine involves a quarterly visual inspection, a semi-annual continuity test with a multimeter, and an annual infrared scan of the frame surface. These simple checks catch most failures before they result in frozen doors.

Installation Best Practices — Wiring, Placement, Controller Setup

Proper installation is what separates a heater that works reliably for 15 years from one that fails in year two. Follow these guidelines:

Cable placement

The heating cable must run continuously around the entire door frame perimeter, with no gaps or overlaps. For hinged doors, route the cable along the frame rebate — the channel where the door panel sits when closed. This is the critical frost-prone zone. Avoid routing the cable through hinge areas or drain channels where it can be pinched.

Wiring

Use copper conductors sized for the heater's total current draw. A typical 30 W/m cable on a 3 m perimeter draws under 0.5 A at 220 V, so 1.0 mm² wire is generally sufficient. For three-phase installations or longer runs, consult an electrician and use at least 1.5 mm² wire. All splices must be made with waterproof, cold-rated connectors — standard electrical tape will fail below -10 °C.

Controller positioning

Mount the thermostat or controller on the warm side of the door frame, at roughly mid-height. Do not place it at the very top (warmest) or bottom (coldest) of the frame, as this will cause the rest of the frame to be over- or under-heated. For self-regulating cables, no controller is needed — but a simple on/off switch for seasonal use is still recommended.

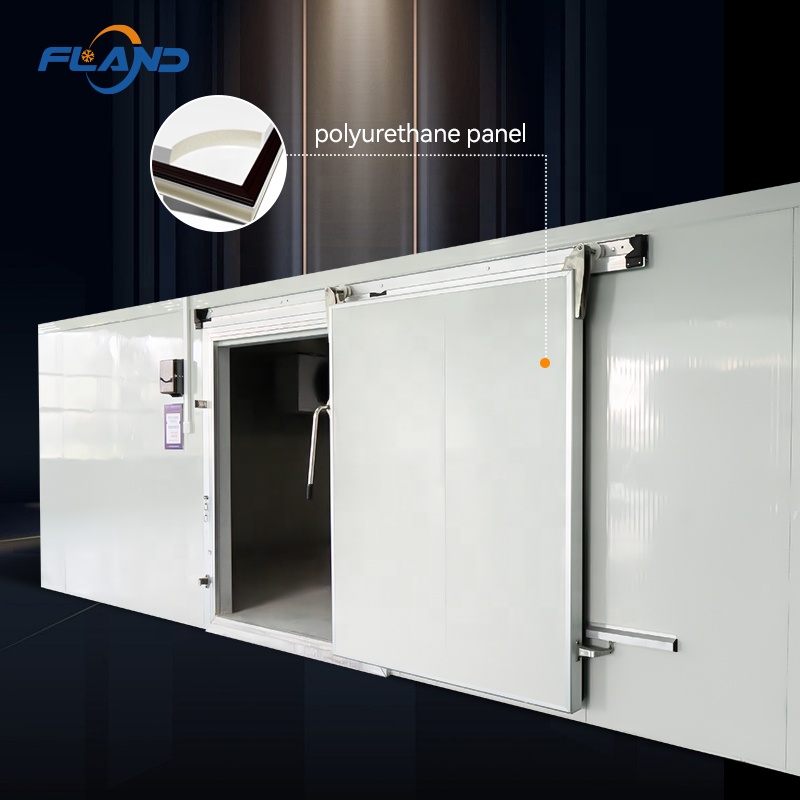

Flandcold Pre-Engineered Heated Doors — Ready Out of the Box

Retrofitting a frame heater onto an existing door is doable, but it introduces risk: drilling into insulated panels, routing cables through confined frame channels, and hoping your seal holds. A far more reliable approach is to order the door with the heater already integrated at the factory.

Flandcold, a cold room equipment manufacturer based in Xiaoxian, Anhui, China, has been producing heated door frames as a standard feature on all freezer-grade doors for over a decade. Every Flandcold freezer door ships with the following pre-installed:

• Silicone or PTFE heating cable, factory-routed into the full frame perimeter
• Integrated digital thermostat controller, pre-wired and tested
• Self-regulating cable option available for energy-sensitive installations
• Polyurethane insulation in 75 mm, 100 mm, or 150 mm thickness to match your temperature requirements

Flandcold holds more than 60 patents in cold storage technology and is certified to NSF, CE, UL, and ISO standards. By integrating the heater during door manufacturing rather than in the field, Flandcold eliminates the most common failure points: improper cable routing, poorly sealed splices, and misaligned thermostats. Each door is factory-tested at rated temperature before shipment.

For buyers sourcing cold room doors internationally, the advantage is clear: no separate heater procurement, no on-site installation labor, no warranty disputes between door supplier and heater supplier. The heated door frame is part of Flandcold's single-source warranty — one point of contact, one factory-direct relationship.

Disclaimer: Specifications and pricing mentioned in this article are approximate and intended for general guidance. Always request a formal specification sheet from your equipment supplier for project-specific engineering.
