1. Introduction: One Wrong Thickness Decision Costs Thousands in Extra Electricity

Imagine this: You've invested $25,000 in a walk-in freezer for your food distribution business. The contractor quotes two options — 100mm PIR panels at a lower price, or 150mm PIR panels for about 15% more upfront. You choose the cheaper option.

Fast forward five years. Your electricity meter has been spinning faster than it should. The thinner panels have been leaking cold — not visibly, but steadily, 24 hours a day, 365 days a year. That "saving" of $1,800 at purchase has cost you over $6,500 in extra electricity, and your compressor has aged twice as fast.

Cold room panel thickness is not a cosmetic choice. It is the single most important thermal performance decision you will make for your cold storage facility. Every extra millimeter of insulation directly translates to lower operating costs, longer equipment life, and more stable storage temperatures.

This guide gives you everything you need: the science behind panel thickness, application-specific recommendations for freezers, chillers, blast freezers, and pharmaceutical storage, climate zone adjustments for tropical environments, and a complete 5-year cost-benefit analysis. By the end, you'll know exactly what thickness to specify — and why.

2. Understanding Thermal Conductivity and Panel Thickness

To choose the right panel thickness, you first need to understand two fundamental concepts: thermal conductivity (λ) and thermal resistance (R-value).

What Is Thermal Conductivity (λ)?

Thermal conductivity, measured in W/m·K, tells you how easily heat flows through a material. The lower the λ value, the better the insulation. Think of it like a leaky bucket: a material with high λ lets heat pour through quickly; a material with low λ holds it back.

Here are the λ values for common cold room panel materials:

• Flandcold PIR (Polyisocyanurate): λ = 0.022 W/m·K — industry-leading thermal performance
• Standard PUR (Polyurethane): λ ≈ 0.023 W/m·K — widely used, ~4.5% less efficient than PIR
• EPS (Expanded Polystyrene): λ ≈ 0.035–0.040 W/m·K — budget option, 60–80% less efficient than PIR
• VIP (Vacuum Insulation Panel) / Advanced Composites: λ ≈ 0.0048 W/m·K — ultra-high performance, premium cost

The R-Value Formula: How Thickness Creates Resistance

The R-value measures a panel's actual thermal resistance, combining material quality with physical thickness:

Let's calculate the R-values for Flandcold PIR panels at common thicknesses:

The practical takeaway: 100mm of PIR outperforms 160mm of EPS. Choosing PIR over EPS means you gain usable floor space inside your cold room — every square meter counts when you're paying rent or building costs.

3. Recommended Thickness by Application

Different temperature requirements demand different panel thicknesses. Below is the definitive thickness guide based on Flandcold's PIR panel testing and real-world installation data across 60+ countries.

Key insight: The -18°C freezer needs roughly 25–50% thicker panels than the +2°C chiller under the same climate conditions. The temperature difference between inside and outside is 38°C for a freezer vs 18°C for a chiller (assuming 20°C ambient) — that's more than double the thermal load.

What About the Floor Panel?

Floor panels bear both thermal and structural loads. For freezer rooms, floor panels should match or exceed wall panel thickness. For chillers, 100mm PIR floor panels are typically sufficient. Always ensure the floor panel's compressive strength rating meets your expected pallet and forklift loads.

4. Climate Zone Adjustment: Tropical vs Temperate

Here's why climate matters for panel selection:

• Temperature delta: A freezer in Dubai (ambient 45°C) faces a 63°C temperature difference to maintain -18°C inside — nearly double the load of the same freezer in London (ambient 15°C).
• Humidity penalty: High humidity increases the latent heat load. Every time the door opens in a tropical environment, moisture-laden air rushes in, condenses, and freezes. Thicker panels slow this heat infiltration.
• Compressor runtime: In tropical zones, compressors on under-insulated cold rooms can run 22+ hours per day, dramatically shortening equipment lifespan.
• Solar radiation: Outdoor or rooftop cold rooms exposed to direct sunlight absorb additional heat through the roof and sun-facing walls. Adding 25mm to roof panels specifically is a low-cost precaution.

Practical example: A vegetable chiller in Indonesia. Temperate recommendation says 75mm PIR. With the 25–50% tropical adjustment, specify 100mm minimum, and consider 120mm if the room faces west and receives afternoon sun.

5. Cost-Benefit Analysis: Thicker Panels Pay for Themselves

The most common objection to thicker panels is the upfront cost. Here's why that thinking is backwards.

This analysis conservatively assumes stable electricity prices. With global energy costs trending upward, the savings grow even larger over a cold room's typical 15–20 year lifespan. Over 15 years, the 150mm panels could save you over $18,000 compared to 100mm — more than the entire cost of the cold room itself.

The calculation is even more dramatic in tropical zones, where the electricity savings from upgrading from 100mm to 150mm can exceed $1,200 per year for a medium-sized freezer.

6. Quick Selection Chart: One Look to Choose Your PIR Thickness

Decision rule of thumb: If ambient temperature minus target temperature exceeds 35°C, use 150mm PIR or thicker. If uncertain between two thicknesses, always choose the thicker option — the payback is nearly guaranteed within 12–18 months.

7. Why Choose Flandcold PIR Panels?

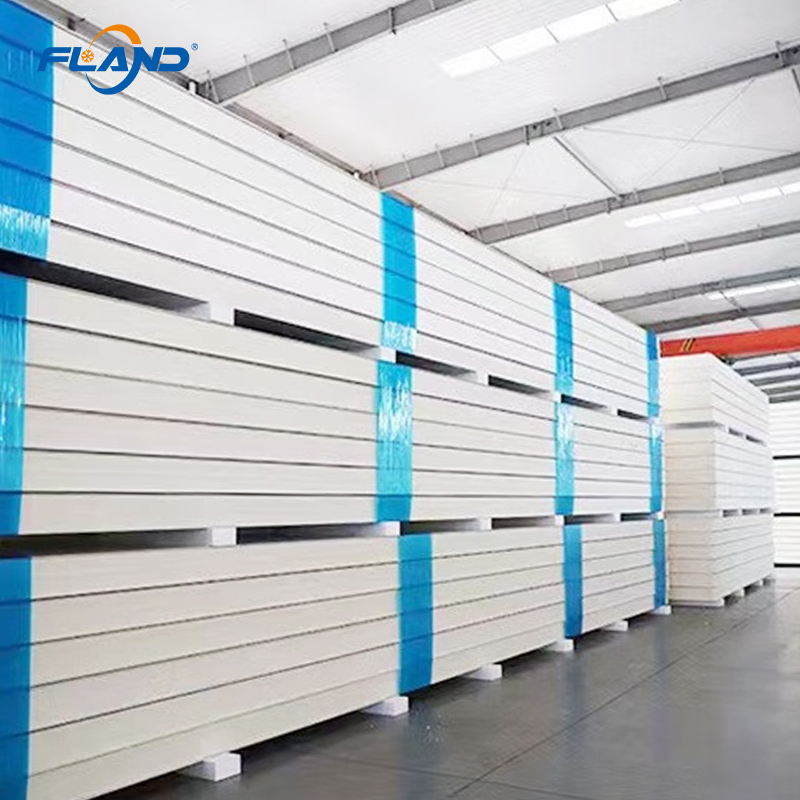

Panel thickness is only effective if the panel itself is engineered to perform. Flandcold PIR panels are built on over 60 cold storage-related patents, manufactured in a 45,000+ square meter factory in Suzhou, Anhui Province — one of the largest dedicated cold room production facilities in China.

Here's what sets Flandcold panels apart:

• Verified λ = 0.022 W/m·K: Not a brochure number — independently tested and certified. This low conductivity means every millimeter of panel works harder for you.
• Annual production of 10,000+ cold room units: Scale that ensures consistent quality, competitive pricing, and reliable global logistics.
• 3,600+ installation and service points worldwide: Local support in your region — not just a supplier, but a long-term partner.
• NSF, CE, UL, ISO certifications: Compliance with international food safety, electrical safety, and quality management standards.
• ICOLD Cloud Platform: Remote temperature monitoring, real-time status alerts, fault detection, and daily energy consumption tracking — turn your cold room into a smart, optimized asset.
• OEM/ODM support: Custom branding, custom sizes, custom specifications — built to your exact requirements.
