When sourcing cold room panels, most buyers focus on panel thickness and brand reputation while overlooking a critical metric: the R-value. This single number tells you exactly how well a panel resists heat flow — and ultimately determines how much you will pay in electricity every month for the next 15 to 20 years.
The cold room insulation market is filled with confusing claims. Some suppliers quote favorable R-values measured under unrealistic laboratory conditions. Others blur the line between PUR and PIR, hoping buyers will not notice the difference in thermal conductivity. The result? Countless cold room operators end up with underperforming insulation and electricity bills 30 to 50% higher than necessary.
In this guide, we will cut through the marketing noise. You will learn what R-value and U-value really mean, how different insulation materials compare side by side, and why Flandcold PIR panels — with a thermal conductivity of just 0.022 W/m·K — can reduce your cold room electricity consumption by 40% or more compared to budget EPS panels. Whether you are building a new cold storage facility or upgrading an existing one, understanding these numbers will help you make a purchasing decision that pays dividends for decades.
Let us start with the basics. R-value measures thermal resistance — how effectively a material blocks heat from passing through it. A higher R-value means better insulation and less heat transfer. U-value (also called thermal transmittance) is simply the inverse of R-value: it measures how much heat actually passes through the material. A lower U-value means better insulation performance.
The relationship between the two is straightforward:
Where:
Here is the key insight: R-value depends on both thickness and the material's thermal conductivity. Two panels with identical thickness can have dramatically different R-values if their lambda values differ. This is why a 100mm PIR panel (λ = 0.022) achieves an R-value of 4.55 m²·K/W, while a 100mm EPS panel (λ = 0.038) only reaches 2.63 m²·K/W — nearly 42% less thermal resistance despite being the same thickness.
For cold room operators, the practical takeaway is simple: always check the lambda value before comparing prices. A cheaper panel with a higher lambda will cost you far more in electricity over its service life than the upfront savings suggest.
Different insulation materials have vastly different thermal conductivities. The table below provides a head-to-head comparison of the four most common cold room panel insulation types, all calculated using the formula R = t/λ.
| Material | λ (W/m·K) | R-value (100mm) | R-value (150mm) | U-value (100mm) | Thickness Needed for R=5 |
|---|---|---|---|---|---|
| Flandcold PIR | 0.022 | 4.55 m²·K/W | 6.82 m²·K/W | 0.220 W/m²·K | 110 mm |
| Standard PUR | 0.023 | 4.35 m²·K/W | 6.52 m²·K/W | 0.230 W/m²·K | 115 mm |
| EPS | 0.038 | 2.63 m²·K/W | 3.95 m²·K/W | 0.380 W/m²·K | 190 mm |
| VIP (Vacuum Insulated Panel) | 0.0048 | 20.83 m²·K/W | 31.25 m²·K/W | 0.048 W/m²·K | 24 mm |
Let us analyze these numbers:
Understanding R-value is only half the equation. The real question is: how does a better R-value actually reduce your electricity bill? The answer lies in the heat transfer formula:
Where:
Let us run a real calculation. Consider a cold room with:
Using 150mm PIR panels (U = 0.147 W/m²·K):
Using 150mm EPS panels (U = 0.253 W/m²·K):
Key Finding: PIR panels reduce heat ingress by 42% compared to EPS in this scenario. Over a year of continuous operation (8,760 hours), the PIR cold room saves approximately 14,876 kWh in cooling energy alone. At an industrial electricity rate of $0.12/kWh, that is $1,785 per year in savings — and this figure does not even account for compressor efficiency losses, which typically add another 20 to 30% to actual electricity consumption.
When you factor in compressor COP (Coefficient of Performance, typically 2.5 to 3.0 for medium-temperature cold rooms), the actual electricity savings are even larger. The compressor must remove the heat passing through the walls, and for every 1 kW of heat ingress, the compressor consumes approximately 0.33 to 0.40 kW of electricity. Over 15 years, the total electricity savings from choosing PIR over EPS can exceed $26,000 for a single 300 m² cold room.
Case Study: Riyadh Frozen Storage Facility
A frozen meat storage facility in Riyadh, Saudi Arabia, operating at -20°C internal temperature with an average external temperature of 38°C during summer months, compared two insulation options for their 500 m³ cold room (envelope area approximately 380 m²).
Option A: 150mm PIR panels (λ = 0.022, U = 0.147 W/m²·K)
Option B: 150mm EPS panels (λ = 0.038, U = 0.253 W/m²·K)
Result: The PIR cold room saves $730/year in electricity — a 41.8% reduction. Over the 15-year service life of the cold room, cumulative savings reach $10,950, more than offsetting the higher upfront cost of PIR panels within the first 2 years.
This case is not an outlier. In hot-climate regions — the Middle East, Southeast Asia, Africa, and Latin America — the temperature differential between cold room interiors and ambient environments regularly exceeds 50 K. In these conditions, the choice between PIR and EPS insulation is not a marginal optimization; it is the difference between a profitable cold storage operation and one drowning in electricity costs.
Too many buyers approach cold room panel procurement like a commodity purchase — comparing quotes line by line and choosing the cheapest option. This is a fundamental mistake. Cold room panels are a 15 to 20-year investment, and the electricity they save (or waste) over that period dwarfs the upfront price difference between premium PIR and budget EPS. A thorough understanding of R-value, U-value, and thermal conductivity empowers you to make a purchasing decision based on total cost of ownership, not just the invoice price.
Flandcold (富澜德) has established itself as a leading manufacturer of cold room solutions, with a track record that speaks for itself:

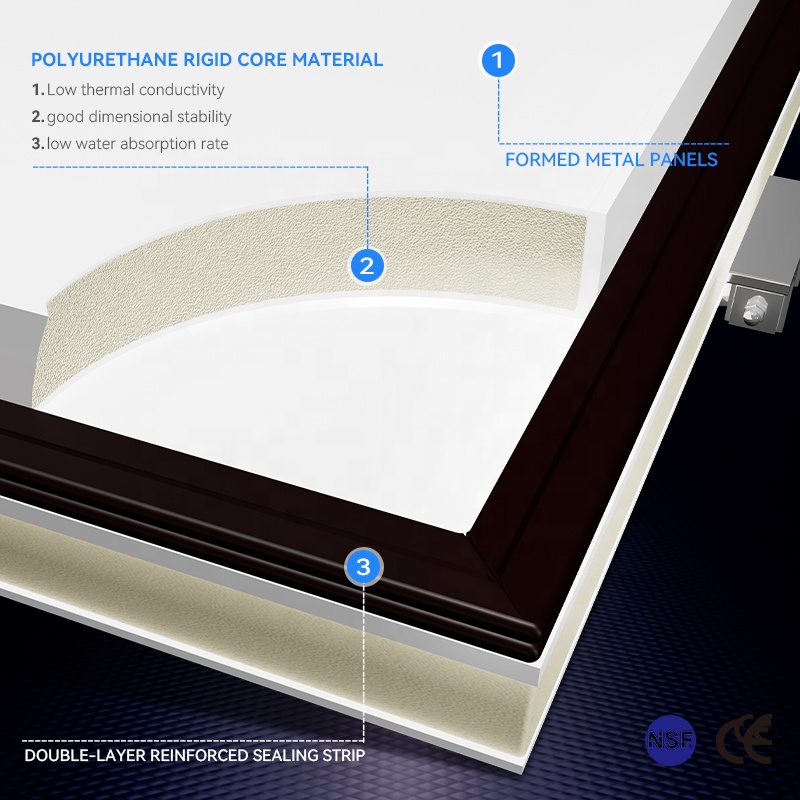

Flandcold PIR panels are engineered with a thermal conductivity of λ = 0.022 W/m·K — among the best in the industry for polyurethane-based insulation. This means every square meter of your cold room envelope transmits less heat, your compressors work less, and your electricity bills stay lower for the entire service life of the facility.
Beyond the panels themselves, the ICOLD Cloud Platform gives you unprecedented visibility into your cold room's performance. Monitor real-time temperatures, track daily electricity consumption, receive instant fault alerts, and optimize your operations from anywhere in the world. This combination of premium insulation and intelligent monitoring is what makes Flandcold cold rooms consistently cheaper to operate than competing systems.
Contact Flandcold today for a free consultation on PIR panel specifications, cold room design, and total cost of ownership analysis tailored to your project.
