High-Speed Door Vs PVC Strip Curtain Vs Air Curtain — Best Cold Storage Door for High-Traffic Warehouses

High-Speed Door vs PVC Strip Curtain vs Air Curtain: Best Cold Storage Door for High-Traffic Warehouses

Published: May 2026 | Reading time: ~8 min | Category: Cold Storage Doors & Energy Efficiency

The High-Traffic Cold Storage Challenge — Keeping Cold In, Moving Fast

In a busy frozen food distribution center, a single cold room entrance can be opened 200 to 500 times per shift. Every second that door stands open, expensive chilled air escapes and warm ambient air rushes in. For a 10°C to -25°C temperature differential, that energy bleed translates directly into higher electricity bills, compressor strain, and product safety risk.

The core dilemma for warehouse operators is straightforward: you need fast access for forklifts and personnel, but you also need to minimize air exchange. The wrong door choice at a high-traffic entrance can cost $5,000 to $15,000 per year in wasted energy alone — not counting product loss from temperature fluctuations.

Three solutions dominate the market for high-traffic cold storage entrances: high-speed doors, PVC strip curtains, and air curtains. Each has distinct strengths and trade-offs. This guide compares them head-to-head so you can select the right option based on your traffic volume, temperature requirements, and budget.

High-Speed Doors vs PVC Strip Curtains vs Air Curtains — Full Comparison

Before diving into each solution, here is a comprehensive comparison of all three options across the factors that matter most in cold storage environments.

Criteria	High-Speed Door	PVC Strip Curtain	Air Curtain
Opening Speed	0.8–2.0 seconds	Instant (walk/fork through)	Always "open" (no barrier)
Sealing Performance	Excellent (95–98% seal when closed)	Good (80–90% depending on overlap)	Moderate (60–80% effectiveness)
Temp. Differential Supported	Up to -40°C inside vs. +40°C outside	Up to -20°C differential	Up to 10–12°C differential
Upfront Cost (per opening)	$3,000–$12,000	$300–$1,200	$800–$3,500
Annual Energy Cost Savings*	High (40–60% reduction vs. open door)	Moderate (25–40% reduction)	Low–Moderate (15–30% reduction)
Daily Cycle Rating	100,000+ cycles/day	Unlimited	Unlimited
Lifespan	8–15 years with maintenance	2–4 years (UV degradation)	10–15 years
Forklift Compatible	Yes (with radar/sensor activation)	Yes	Yes
Hygiene / Food-Grade Rating	NSF/ISO certified models available	Limited (harder to clean)	Good (no physical contact)

*Energy savings are estimated relative to a conventional hinged door left partially or fully open. Actual savings vary by building, climate zone, and usage pattern.

Key Takeaway: No single solution is "best" in every scenario. The right choice depends on your daily door cycles, temperature differential, hygiene requirements, and how much of your budget you can allocate upfront.

When Each Solution Makes Sense — Traffic Volume, Forklift Use, Temperature Range

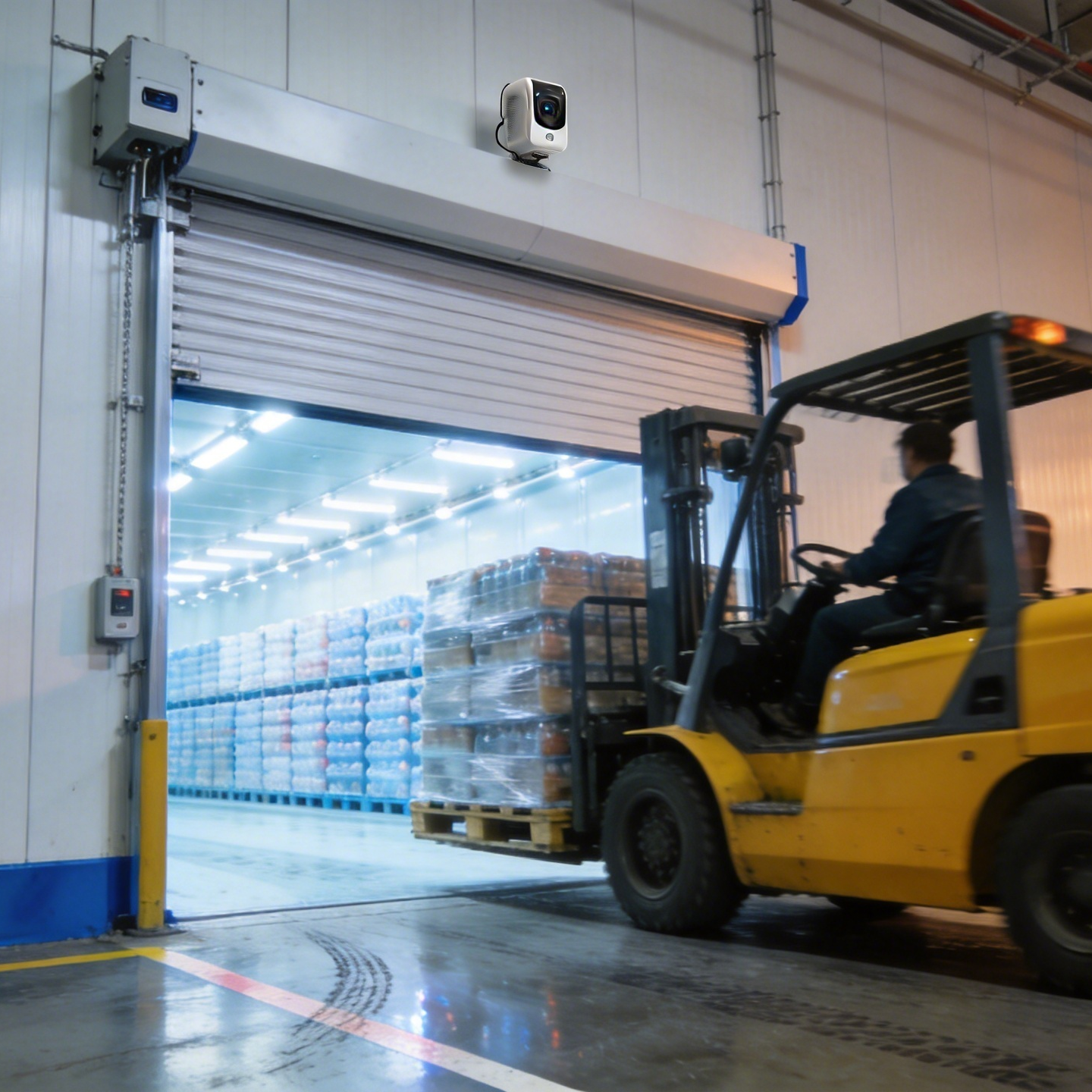

High-Speed Doors: Best for Heavy Forklift Traffic and Deep Freezers

High-speed rapid roll-up or folding doors are the gold standard for cold storage facilities running continuous forklift operations at temperature differentials greater than 20°C. A door that opens in under 1.5 seconds and closes in the same time dramatically reduces the "open-door" energy penalty per cycle.

For a frozen warehouse maintaining -18°C with +30°C ambient temperature, a high-speed door can reduce energy loss by up to 60% compared with a standard swing door. With 300+ cycles per day, the annual energy savings typically pay back the door investment within 12 to 24 months.

Temperature tip: If your cold room operates below -15°C and experiences more than 100 forklift passages per day, a high-speed door with insulated panels (75–150mm PU core) is strongly recommended over PVC strips, which become brittle and crack at extreme low temperatures.

PVC Strip Curtains: Best for Light Traffic and Moderate Temperature Differentials

PVC strip curtains are the most budget-friendly option. They provide a visible physical barrier that personnel and forklifts push through, and they immediately reseal behind each passage. They work well for chill rooms (0°C to +4°C) with 50 to 150 daily passages, or as a secondary barrier inside loading docks.

The main limitation is that PVC strips lose flexibility below -10°C and can crack or shatter in deep-freezer applications. They also accumulate dirt and bacteria in food-handling environments, making them less ideal for high-hygiene zones.

Air Curtains: Best for Climate-Controlled Zones and Supplementary Use

Air curtains create an invisible barrier of high-velocity air across a doorway. They are most effective when the temperature differential is under 12°C, making them suitable for loading docks, anteroom transitions, and retail cold display areas.

In standalone cold storage applications, air curtains rarely provide sufficient insulation. However, they excel as a complementary solution — paired with a high-speed door, an air curtain over the exterior entrance creates a double-barrier system that cuts energy loss even further.

Real Cost Comparison: Upfront Investment vs Long-Term Energy Savings

Understanding the total cost of ownership (TCO) is essential. Below is a simplified ROI calculation for a typical 3m × 3.5m cold room entrance with 250 forklift passages per day, -18°C internal temperature, and +30°C ambient temperature.

Cost Factor	High-Speed Door	PVC Strip Curtain	Air Curtain Only
Upfront Cost	$8,500	$800	$2,200
Annual Energy Waste*	$2,800	$5,600	$7,200
Annual Maintenance	$400	$600 (strip replacement)	$150
5-Year Total Cost	$24,700	$34,400	$42,050

*Energy waste estimated at $0.12/kWh, 300 operating days/year, based on heat-load modeling for the stated temperature differential and cycle count.

The Bottom Line on Cost

Despite the higher upfront investment, the high-speed door delivers the lowest 5-year total cost — saving approximately $9,700 compared with PVC strips and $17,350 compared with an air curtain alone. The payback period is roughly 18 months. For any facility running 200+ cycles per day with a temperature gap exceeding 15°C, the high-speed door is the most economical long-term choice.

Common Mistakes: Over-Specifying or Under-Protecting Your Cold Room Entrance

Mistake 1: Installing a High-Speed Door Where a Strip Curtain Would Suffice

Not every entrance needs a rapid door. For a small walk-in cooler (0°C to +4°C) with fewer than 50 daily openings, spending $8,000 on a high-speed door is over-specifying. A $600 PVC strip curtain will deliver 90% of the performance benefit at a fraction of the cost.

Mistake 2: Using PVC Strips in Deep-Freezer Applications

Standard PVC strips become rigid below -10°C and can snap or shatter when struck by a forklift at -25°C. This creates sharp debris and eliminates the seal entirely. If you need strip curtains below -10°C, use only low-temperature-grade PVC rated to -40°C — but even then, expect a much shorter replacement cycle of 12 to 18 months.

Mistake 3: Relying Solely on an Air Curtain for Freezer Entrances

An air curtain cannot compensate for a 30°C+ temperature differential. The air stream is disrupted by forklift movement, cross-drafts, and pressure imbalances. In a freezer environment, an air curtain alone will result in rapid temperature rise, ice formation, and compressor overload.

Mistake 4: Ignoring Sensor and Automation Integration

A high-speed door without proper activation sensors (radar, loop detector, or photo-eye) is only as fast as the person pressing the button. For forklift traffic, hands-free sensor activation is non-negotiable. Without it, operators often prop the door open, erasing all energy savings.

How to Choose the Right High-Traffic Solution in 5 Steps

5-Step Decision Framework

Step 1 — Count your daily door cycles. Fewer than 50 cycles/day? Start with PVC strips. 50–150 cycles? Consider strips for chill rooms or a high-speed door for freezers. 150+ cycles? High-speed door is the clear winner.

Step 2 — Measure your temperature differential. Under 12°C: air curtains and strips are viable. 12–25°C: high-speed door or low-temp PVC strips. Over 25°C: high-speed door is essential.

Step 3 — Evaluate hygiene and compliance requirements. For food-grade or pharmaceutical facilities with NSF/ISO audit requirements, high-speed doors with smooth, washable panels and certified gaskets outperform PVC strips, which harbor bacteria at overlap points.

Step 4 — Factor in forklift type and size. Double-deep reach trucks and turret trucks need wider openings and faster cycle times. Ensure your chosen door width accommodates the turning radius and that sensors are positioned for reliable activation.

Step 5 — Calculate your 5-year TCO. Don't decide on upfront cost alone. Include energy waste, maintenance, and strip/curtain replacement costs. In most high-traffic freezer scenarios, the high-speed door pays for itself within two years.

Flandcold High-Performance Door Solutions for Busy Cold Storage Facilities

Flandcold is a leading cold room equipment manufacturer based in Xiaoxian, Anhui, China, with over 60 patents and certifications including NSF, CE, UL, and ISO. With a global network of 3,600+ service points and factory-direct pricing, Flandcold delivers engineered door solutions tailored to the demands of high-traffic logistics and cold chain operations.

What Flandcold Offers

High-Speed Rapid Doors: Engineered for 100,000+ daily cycles, Flandcold rapid roll-up doors feature self-repairing curtain technology, insulated PU panels (75mm, 100mm, or 150mm thickness), and hands-free radar/loop sensor activation. Opening speeds of 0.8–2.0 seconds minimize air exchange at every passage.

PVC Strip Curtains: Available in standard and low-temperature formulations (rated to -40°C), Flandcold PVC strips are offered in multiple widths (200mm, 300mm, 400mm) and overlap configurations to match your traffic type — pedestrian, hand pallet jack, or counterbalanced forklift.

Air Curtain Integration: Flandcold air curtains are designed to complement high-speed doors in double-barrier systems, reducing energy loss at exterior loading docks and transition zones by an additional 15–20%.

Factory-Direct Advantage: By purchasing directly from the manufacturer, overseas buyers eliminate distributor markups, reduce lead times, and gain access to Flandcold's engineering team for custom door sizing, temperature-specific material selection, and integration with existing building management systems.
