Monoblock vs Split Refrigeration System for Cold Room: Which One Costs Less to Run?

Published: May 2026  |  Reading time: 8 min  |  Category: Cold Room Equipment Guide

Choosing the right refrigeration system for your cold room is one of the most impactful decisions you will make — not just for day-one performance, but for years of operational cost. Whether you are building a small walk-in chiller for a restaurant, a mid-size cold storage facility for a food distributor, or a commercial freezer room for a supermarket chain, the choice typically comes down to two options: a monoblock refrigeration unit or a split refrigeration system.

This article breaks down the real-world cost implications of each system — from installation and energy consumption to maintenance and total cost of ownership — so you can make an informed decision based on your actual needs rather than marketing claims.

What Is a Monoblock Refrigeration Unit?

A monoblock refrigeration unit (also called an integrated or all-in-one cold room unit) houses the compressor, condenser, evaporator, and expansion valve within a single compact casing. The entire unit mounts directly onto the cold room wall or ceiling panel, with no refrigerant piping required between indoor and outdoor sections.

Monoblock units are typically available in smaller capacities, generally ranging from 1 HP to 5 HP, making them well-suited for cold rooms up to approximately 20–30 cubic meters. They operate on standard refrigerants such as R404A or the eco-friendly R290 and can maintain temperatures from 0°C to 8°C for chilled rooms and down to -18°C for freezer rooms.

Because all components are enclosed in one housing, monoblock units generate low noise levels — typically under 60 dB — and are compatible with a variety of power supplies including 220V/380V at 50Hz or 60Hz, which is important for international markets across the Middle East, Southeast Asia, Africa, and Latin America.

What Is a Split Refrigeration System?

A split refrigeration system separates the cooling circuit into two distinct units: an indoor evaporator unit mounted inside the cold room and an outdoor condensing unit (housing the compressor and condenser) installed outside the building. These two units are connected by insulated copper refrigerant piping that must be professionally brazed, pressure-tested, and charged on-site.

Split systems can handle significantly higher cooling capacities, from small commercial setups to large industrial cold storage facilities. They are commonly used when a cold room exceeds 30 cubic meters, when multiple cold rooms share a single compressor rack, or when noise and heat rejection from the condenser must be kept outside the occupied space.

However, the split system's complexity means higher installation costs, more components that can fail, and the need for qualified HVAC technicians for setup and ongoing service.

Installation Cost Comparison: Monoblock vs Split System

Installation cost is where the two systems diverge most dramatically. Understanding these differences helps buyers avoid budget surprises and plan accurately.

Running Cost and Energy Efficiency

When evaluating monoblock vs split cold room running cost, several factors come into play beyond the equipment's rated COP (Coefficient of Performance).

Energy Consumption

Modern monoblock units with inverter-driven compressors and EC fans have closed the efficiency gap considerably. For small to medium cold rooms (5–25 m³), a well-engineered monoblock unit operating under normal ambient conditions can achieve energy consumption comparable to a split system of equivalent capacity.

However, in hot climates — where ambient temperatures regularly exceed 38°C — split systems have an advantage because the condenser is located outdoors where it can reject heat more effectively. In indoor-installed monoblock units, the heat generated by the condenser raises the ambient temperature around the unit, which marginally reduces cooling efficiency and increases compressor workload.

Climate-Specific Performance

For markets in the Middle East and Africa, where temperatures are consistently high, a split system may deliver 10–15% better energy efficiency under peak summer conditions. In more temperate regions or indoor climate-controlled environments, the difference is negligible.

Maintenance and Total Cost of Ownership

Maintenance requirements differ significantly between the two systems and directly impact total cost of ownership over a 5–10 year period.

Monoblock Maintenance

• All components are factory-assembled and sealed at the factory, meaning no on-site refrigerant leaks from joint connections
• Condenser coil cleaning is straightforward and accessible from outside the cold room
• No copper piping to inspect for corrosion or insulation degradation
• Typical annual service cost: $80 – $200

Split System Maintenance

• Refrigerant piping joints are potential leak points, especially in humid or coastal environments
• Pipe insulation requires periodic inspection and replacement
• Two separate units mean two sets of electrical components, fans, and coils to maintain
• Requires specialized HVAC-certified technicians for refrigerant handling
• Typical annual service cost: $200 – $500

Advantages and Disadvantages: Which System Fits Your Project?

Neither system is universally superior. The right choice depends on your cold room size, climate, budget, and long-term operational requirements.

Monoblock Unit Advantages

• Fast, simple installation — no brazing or refrigerant piping needed
• Lower upfront cost, ideal for small to medium cold rooms
• Factory-sealed refrigerant circuit eliminates leak risks
• Compact design saves indoor space
• Low noise operation (under 60 dB) suitable for customer-facing environments
• Easy to relocate or expand cold room capacity

Monoblock Unit Disadvantages

• Capacity limited to approximately 5 HP, not suitable for large industrial cold rooms
• Condenser heat is released into the room's ambient area
• Slightly reduced efficiency in extreme outdoor heat above 38°C

Split System Advantages

• Higher cooling capacity, scalable for large facilities
• Better heat rejection in hot climates since condenser is outdoors
• Can serve multiple cold rooms from a single compressor rack
• Quieter indoor environment (no compressor noise inside the building)

Split System Disadvantages

• Significantly higher installation cost and complexity
• More maintenance points and higher ongoing service costs
• Requires certified HVAC technicians for installation and repair
• Piping and insulation are vulnerable to damage and corrosion

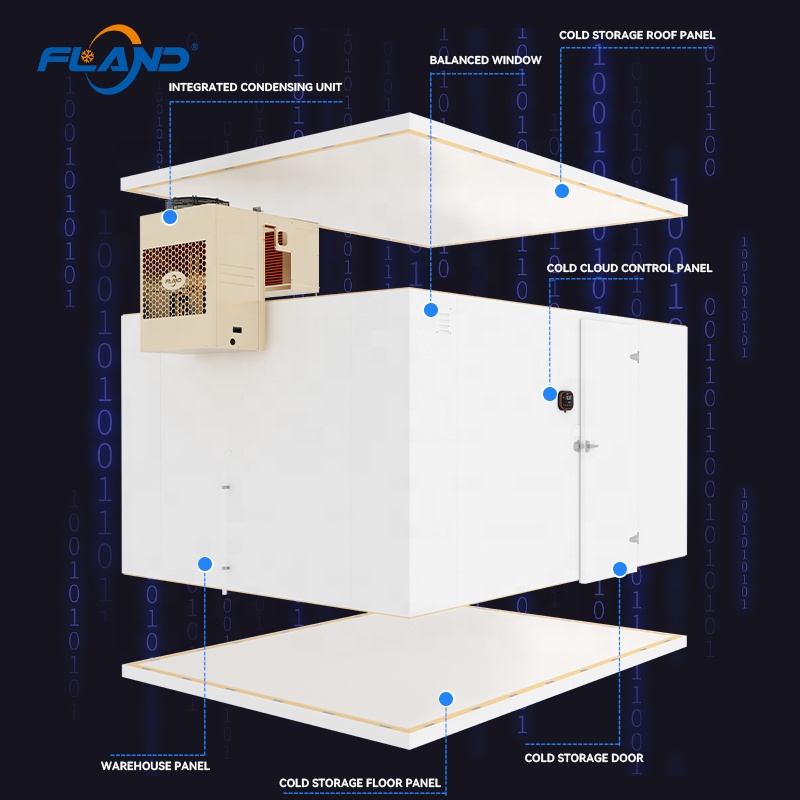

Flandcold Monoblock Units: Engineered for Cost-Efficient Cold Storage

Flandcold (富澜德), a leading cold chain equipment manufacturer with over 60 cold storage patents and certifications including NSF, CE, UL, and ISO, offers a comprehensive range of monoblock refrigeration units designed specifically for cost-conscious buyers in international markets.

Flandcold's monoblock cold room units are factory-direct products, eliminating middleman markups and ensuring competitive pricing. Key product features include:

• Power Range: 1–5 HP models covering cold rooms from small walk-in chillers to medium commercial freezers
• Refrigerant Options: R404A for standard applications and R290 for environmentally conscious projects
• Temperature Range: Chilled rooms at 0°C to 8°C and freezer rooms down to -18°C
• Low Noise: Under 60 dB, suitable for restaurants, retail, and supermarket back rooms
• Power Compatibility: 220V/380V, 50Hz/60Hz — ready for markets in the Middle East, Southeast Asia, Africa, and Latin America

Every Flandcold unit undergoes full factory testing before shipment, including refrigerant charge verification, electrical safety checks, and performance curve validation. This factory-direct quality control means fewer on-site issues, lower warranty claims, and reduced maintenance overhead throughout the product's service life.

For buyers comparing monoblock vs split cold room costs, Flandcold's monoblock units represent a compelling total-cost advantage — particularly for small to medium cold storage projects where installation simplicity, reliable performance, and long-term savings are the priorities.
