PIR vs PUR vs EPS Cold Room Panels: Thermal Conductivity, Fire Rating & Lifespan Compared

1. Introduction: The Hidden Cost of Choosing the Wrong Panel

Selecting cold room panels is not just a procurement decision — it is a 20-year financial commitment. Many buyers focus on the upfront unit price and unknowingly choose EPS panels that appear 30–40% cheaper. What they do not see is the silent penalty: higher thermal conductivity means the compressor runs longer, draws more electricity, and wears out faster.

Over a 5-year period, a mid-sized cold storage facility using EPS panels can consume 35–50% more energy than one using PIR panels. That is not a minor rounding error — it is tens of thousands of dollars in unnecessary electricity bills. Worse still, moisture ingress into EPS foam degrades insulation performance year after year, creating a downward spiral of rising energy costs and falling temperature stability.

In this guide, we compare PIR (polyisocyanurate), PUR (polyurethane), and EPS (expanded polystyrene) cold room panels across seven critical dimensions: thermal conductivity, fire rating, density, water absorption rate, service lifespan, unit price, and ideal application scenarios. We also introduce next-generation VIP (vacuum insulated panel) technology with an extraordinary λ value of 0.0048 W/m·K. By the end, you will have a clear, data-driven framework for choosing the right panel — and understanding why Flandcold PIR panels consistently deliver the lowest total cost of ownership.

2. PIR vs PUR vs EPS: Thermal Conductivity Comparison

Thermal conductivity (λ, measured in W/m·K) is the single most important metric for cold room insulation. A lower λ value means less heat transfer, which translates directly into lower energy consumption and more stable interior temperatures. The difference between these three foam technologies is not marginal — it is structural.

PIR (polyisocyanurate) achieves a λ value of 0.022 W/m·K thanks to its modified polyurethane chemistry that forms a highly cross-linked cellular matrix with fine, uniform closed cells. PUR (polyurethane), the predecessor technology, comes in at ≈0.023 W/m·K — a slight but meaningful difference over thousands of square meters of wall area. EPS (expanded polystyrene), made by expanding polystyrene beads, sits much higher at 0.035–0.040 W/m·K, meaning roughly 60–80% more heat passes through the same panel thickness.

For context, emerging VIP (vacuum insulated panel) technology achieves an astonishing λ of 0.0048 W/m·K — roughly 4.5× better than PIR — though it comes with higher costs and handling constraints that limit widespread adoption. The table below summarizes all seven comparison dimensions:

As the data shows, PIR leads on nearly every performance dimension. The upfront price gap between PIR and EPS is quickly erased by energy savings — a theme we will quantify in Section 5.

3. Fire Rating Matters: PIR B1 vs EPS B3

Fire safety in cold storage is not a theoretical concern. In 2023 alone, dozens of cold storage facility fires were reported globally, many traced to combustible insulation materials. Insurance companies increasingly require B1 or higher fire ratings for commercial cold storage, and building codes in the EU, North America, and the Middle East are tightening fast.

PIR panels achieve a B1 fire rating (flammable but self-extinguishing) because the isocyanurate bond structure forms a protective char layer when exposed to flame. This char acts as a thermal barrier, slowing heat penetration and preventing the fire from spreading. PIR also produces less smoke and toxic gas compared to PUR, giving occupants more evacuation time.

PUR panels typically rate B2 (moderately flammable) — they resist initial ignition but will sustain combustion under sustained heat. EPS panels are rated B3 (easily flammable) and represent a genuine fire hazard in any facility storing flammable goods or using electrical equipment. EPS melts and drips when burned, spreading fire rapidly through ceiling and wall cavities.

It is worth noting that Flandcold PIR panels undergo rigorous fire performance testing and carry international certifications including CE (EU), UL (USA), and NSF, ensuring compliance with the strictest global fire safety standards.

4. Moisture & Lifespan: Why Water Absorption Changes Everything

Cold room panels operate in an inherently hostile environment: temperature differentials between the cold interior and warm exterior create constant vapor pressure that drives moisture into the insulation core. Once water enters the foam, it dramatically increases thermal conductivity — water conducts heat roughly 25 times better than still air.

This is where the structural differences between PIR, PUR, and EPS become critical. PIR foam has a closed-cell rate exceeding 95%, meaning the vast majority of its cellular structure consists of sealed gas pockets that resist water vapor intrusion. Even under prolonged exposure to high-humidity environments, PIR panels maintain their original λ value with minimal degradation.

EPS panels tell a very different story. The bead-based structure creates natural pathways for moisture migration. In field tests, EPS panels installed in high-humidity cold storage environments showed water absorption rates of 4–8% by volume within the first 3–5 years. The impact on thermal performance is severe:

• EPS dry state: λ ≈ 0.038 W/m·K
• EPS after moisture absorption: λ rises to 0.046 W/m·K — a 21% increase
• PIR after equivalent exposure: λ remains at ≈ 0.022–0.023 W/m·K (negligible change)

This means an EPS cold room that starts out merely mediocre becomes progressively worse every year. The compressor works harder, electricity bills climb, and temperature uniformity degrades — threatening product quality and food safety compliance.

The lifespan implications are equally dramatic. PIR panels, with their superior moisture resistance and structural integrity, deliver a service life of 20–25 years. EPS panels typically require replacement after 8–12 years, as accumulated moisture and thermal cycling break down the bead bonds. The math is simple: over a 25-year period, you would replace EPS panels two to three times while PIR panels continue performing as designed.

5. Real Cost Analysis: Cheap Panels Cost More Over Time

The appeal of EPS panels is understandable — at first glance, they can cost 30–40% less per square meter than PIR. But procurement price is only the opening line of a much longer financial story. Total Cost of Ownership (TCO) includes panel replacement, energy consumption, compressor maintenance, and potential product loss from temperature excursions. When you add these factors together, the picture inverts completely.

Consider a 500 m² cold storage facility operating at -18°C, running 24/7 with an electricity rate of $0.12/kWh. Here is how the costs stack up:

The numbers speak for themselves. Over 25 years, choosing EPS over PIR costs an additional $210,000 — more than 7× the initial panel savings. And this does not even account for the intangible costs of temperature-related product loss, insurance premiums, or business disruption during panel replacement.

6. Summary: Which Panel Is Right for You?

For the vast majority of commercial cold storage applications, PIR is the clear winner. It offers the best balance of thermal performance, fire safety, moisture resistance, and long-term value. The slight premium over PUR is justified by the measurable improvement in λ value and fire rating, while the gap over EPS is recovered through energy savings within the first 2–3 years of operation.

7. Why Choose Flandcold PIR Panels?

Not all PIR panels are created equal. The manufacturing process, foam formulation, panel thickness precision, and joint design all determine real-world performance. Flandcold has spent over a decade engineering cold storage solutions that deliver superior performance in the most demanding environments worldwide.

Here is what sets Flandcold PIR panels apart:

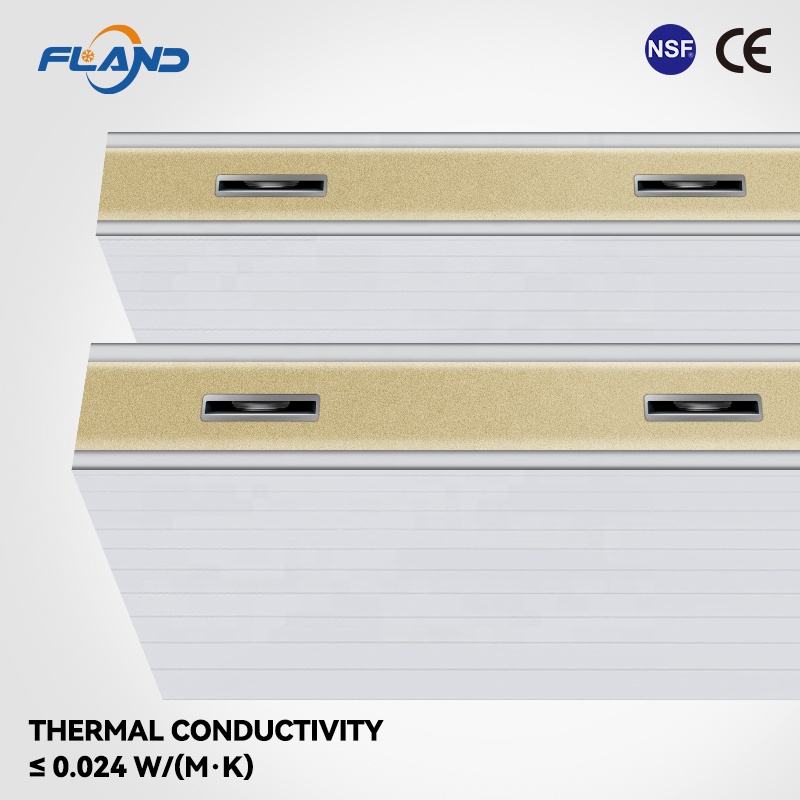

• Premium PIR core with λ = 0.022 W/m·K — among the best in the industry
• 60+ cold storage-related patents covering panel design, joint systems, and insulation technology
• 45,000+ m² manufacturing facility in Xiao County, Suzhou, Anhui — producing 10,000+ cold storage units annually
• International certifications: NSF, CE, UL, ISO — meeting the strictest global standards
• Global service network: 3,600+ installation and after-sales service centers worldwide
• ICOLD Cold Cloud Platform: Remote temperature control, real-time status monitoring, fault alerts, and daily energy consumption tracking — all from your smartphone
• Full product line: Modular cold rooms, container cold rooms, refrigeration units, air coolers, and complete OEM/ODM customization

Whether you are building a small walk-in freezer for a restaurant or a large-scale distribution cold storage for a logistics company, Flandcold provides end-to-end solutions backed by engineering expertise and a global support network. Our PIR panels are trusted by food processors, pharmaceutical companies, and logistics providers across 50+ countries.
