How to Size a Monoblock Refrigeration Unit: HP, kW & BTU Selection Guide

Choosing the wrong monoblock refrigeration unit size is one of the most expensive mistakes in cold room construction. An undersized unit runs continuously, drives up electricity bills, and shortens compressor lifespan. An oversized unit cycles too frequently, causing temperature fluctuations that compromise product quality. This guide walks you through the complete monoblock refrigeration unit sizing process, including HP-to-kW conversion, BTU calculations, and a volume-based selection table to help you choose the right unit for your cold room.

Understanding Monoblock Refrigeration Unit Cooling Capacity

A monoblock refrigeration unit is an all-in-one system that integrates the compressor, condenser, and evaporator into a single compact housing. Unlike split systems, monoblock units install directly onto the cold room panel without requiring refrigerant piping between indoor and outdoor components. This design makes them especially popular for small to medium cold rooms in commercial kitchens, supermarkets, restaurants, and pharmaceutical storage.

Cooling capacity is the single most critical specification when selecting a monoblock unit. It determines how much heat the unit can remove from the cold room per hour, and it is expressed in three common units:

• BTU/h (British Thermal Units per hour) — The most widely used unit in North America and international trade. One BTU is the energy needed to raise one pound of water by one degree Fahrenheit.
• kW (kilowatts) — The standard metric unit used in Europe, Southeast Asia, and most engineering specifications. One kW equals approximately 3,412 BTU/h.
• HP (horsepower) — A practical rating used by manufacturers to classify compressor motor size. One HP equals approximately 0.746 kW or 2,545 BTU/h of cooling capacity (though actual output varies by refrigerant and efficiency).

HP to kW to BTU: Refrigeration Conversion Formulas

Understanding how to convert between these units is essential for comparing products from different manufacturers and regions. Many buyers encounter specifications in one unit but need to verify against another.

Core Conversion Formulas

• HP to kW: kW = HP × 0.746 (for motor input power); Cooling kW ≈ HP × 2.5 to 2.8 (for actual refrigeration output)
• kW to BTU/h: BTU/h = kW × 3,412
• HP to BTU/h: BTU/h = HP × 2,544 (mechanical HP) or HP × 6,800 to 9,500 (actual cooling output)
• Tons of Refrigeration: 1 TR = 12,000 BTU/h = 3.517 kW

When reading manufacturer datasheets, pay close attention to whether the stated power rating refers to input power (electrical consumption) or cooling capacity (heat removal output). These are fundamentally different values. A 2 HP motor consumes approximately 1.5 kW of electricity but may deliver 5.0 kW of cooling, thanks to the heat pump effect of the refrigeration cycle.

Key Factors That Affect Cold Room Cooling Load

Before you can select the right monoblock unit, you need to calculate the total cooling load of your cold room. This is the sum of all heat sources that the refrigeration system must overcome to maintain the target temperature. The five primary factors are:

1. Transmission load (heat gain through walls, floor, and ceiling): This depends on the panel insulation material (PIR or PU), insulation thickness (typically 80mm, 100mm, or 150mm), the temperature difference between inside and outside, and the total surface area of the cold room. Thicker insulation and PIR panels reduce transmission load significantly.
2. Product load (heat introduced by goods entering the room): Freshly harvested produce, warm beverages, or recently cut meat carry latent and sensible heat. The product load depends on the mass of goods, their specific heat capacity, the temperature drop required, and the frequency of restocking.
3. Infiltration load (warm air entering through door openings): Every time the cold room door opens, warm ambient air enters and cold air escapes. This is the most underestimated load factor. High-traffic cold rooms (supermarkets, fulfillment centers) need significantly more cooling capacity than low-traffic storage rooms.
4. Internal heat load (lights, fans, equipment, and people): Lighting, defrost heaters, evaporator fan motors, and human presence all generate heat inside the cold room. LED lighting produces far less heat than traditional bulbs.
5. Safety margin: A 10–15% safety factor is standard practice to account for peak ambient temperatures, door gasket degradation over time, and occasional overstocking.

In hot climates such as the Middle East, Southeast Asia, and Africa, ambient temperatures regularly exceed 40°C, making the transmission load and infiltration load substantially higher than in temperate regions. This is why the same cold room may require a larger unit in Dubai than in London.

Monoblock Unit HP Selection Table by Cold Room Volume

The table below provides general recommendations for monoblock unit sizing based on cold room volume and target temperature. These guidelines assume standard PIR panel insulation (100mm for chillers, 150mm for freezers) and moderate door traffic.

For cold rooms larger than 60 m³, split refrigeration systems or multiple monoblock units are generally recommended, as a single monoblock unit cannot efficiently distribute cold air across a very large space.

Step-by-Step: How to Calculate Cold Room Cooling Capacity

For projects that require precise sizing rather than general guidelines, follow this step-by-step calculation method:

Step 1: Calculate Transmission Load

Formula: Q_trans = U × A × ΔT

Where U is the overall heat transfer coefficient (W/m²·K), A is the total surface area (m²), and ΔT is the temperature difference between outside and inside. For 100mm PIR panels, U is approximately 0.23 W/m²·K. For 150mm panels, U drops to approximately 0.16 W/m²·K.

Step 2: Estimate Product Load

Formula: Q_prod = m × c_p × ΔT / t

Where m is the product mass (kg), c_p is the specific heat capacity (kJ/kg·°C), ΔT is the temperature difference the product must undergo, and t is the time allowed to reach target temperature (hours). For fruits and vegetables, c_p is typically 3.5–4.0 kJ/kg·°C; for meat and fish, 2.0–3.0 kJ/kg·°C.

Step 3: Estimate Infiltration Load

Formula: Q_inf = V × ρ × Δh × n / 3,600

Where V is the room volume (m³), ρ is the air density (approximately 1.2 kg/m³), Δh is the enthalpy difference between outside and inside air (kJ/kg), and n is the estimated number of air changes per hour due to door openings (typically 1–5 for moderate traffic).

Step 4: Add Internal Heat Load and Safety Margin

Sum all loads: Q_total = Q_trans + Q_prod + Q_inf + Q_internal, then multiply by 1.10 to 1.15 for the safety margin. The final value in kW gives you the minimum cooling capacity required.

Common Sizing Mistakes and How to Avoid Them

Proper monoblock unit sizing requires experience and attention to detail. Here are the most frequent errors we see in the field, and how to prevent them.

Top mistakes to avoid:

1. Using room floor area instead of volume — ceiling height matters greatly for total heat gain.
2. Ignoring local climate conditions — ambient temperature directly affects every load factor.
3. Not accounting for door traffic — a busy loading dock cold room needs far more capacity than a back-of-house storage room.
4. Forgetting the safety margin — a 10% buffer is not optional, it is standard engineering practice.
5. Choosing by price alone — the cheapest unit may have a lower coefficient of performance (COP), consuming more power for the same cooling output.

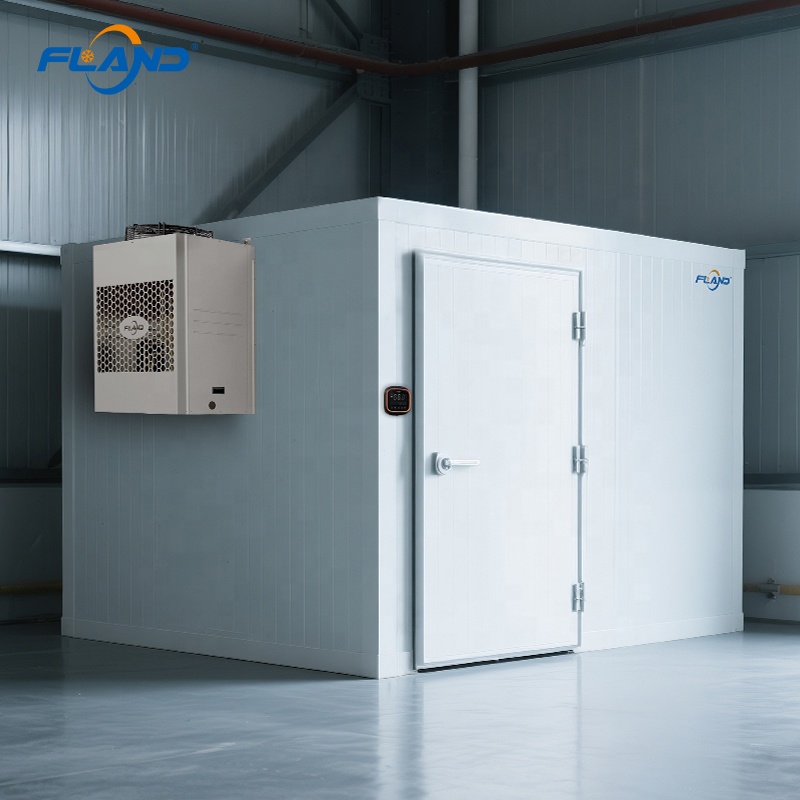

Flandcold Monoblock Units: Engineered for Global Performance
