Monoblock Cold Room Installation: A Step-by-Step Guide (Can You Really DIY?)

1. What Is a Monoblock Cold Room? The "Plug and Play" Cold Storage Revolution

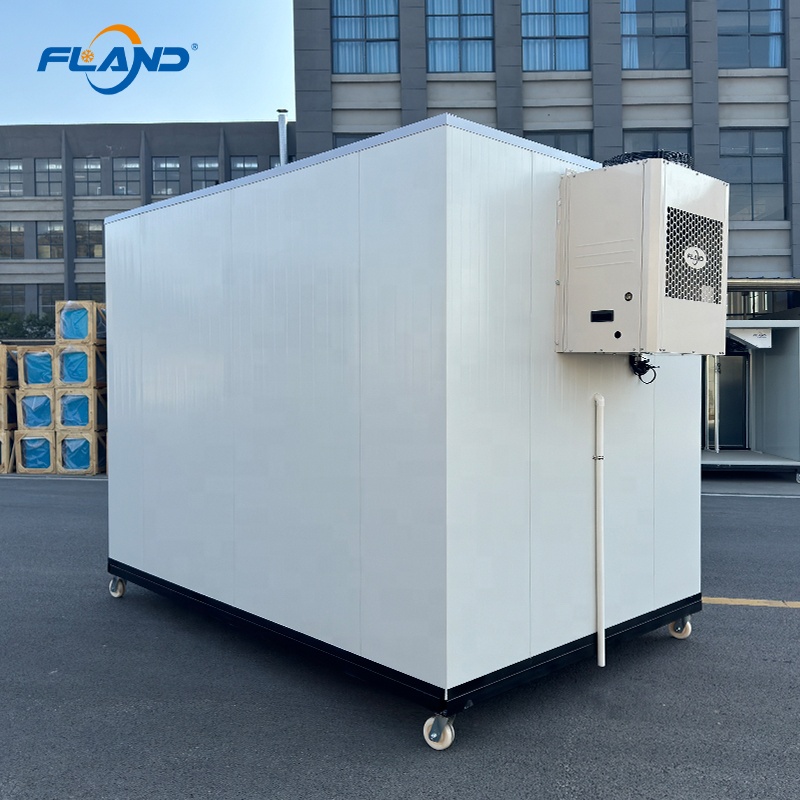

A monoblock cold room is a self-contained refrigeration unit where the evaporator and condenser are integrated into a single compact housing. Unlike traditional split systems that require separate indoor and outdoor units connected by copper piping, a monoblock unit arrives pre-charged with refrigerant, pre-wired, and factory-tested — ready to mount and power on.

The "plug and play" monoblock cold room concept is transforming how restaurants, food processing facilities, supermarkets, and cold chain logistics companies approach cold storage. Instead of hiring a specialized refrigeration technician for two days of on-site work, many buyers are asking the same question: Can I install a monoblock cold room myself?

Flandcold has been at the forefront of this shift, with 60+ cold room patents and international certifications including NSF, CE, UL, and ISO. Our monoblock units — available in 1–5 HP with R404A or R290 refrigerant options — are shipped factory-direct, fully pre-commissioned, and ready for immediate installation.

2. Can You Really DIY a Monoblock Cold Room Installation?

The short answer is: yes — with the right preparation. Monoblock cold room units are designed from the ground up to eliminate the most technically demanding aspects of cold room installation: refrigerant piping, brazing, pressure testing, vacuum evacuation, and refrigerant charging. Because the refrigeration circuit is sealed and pre-charged at the factory, the on-site work shifts from refrigeration engineering to basic mechanical and electrical tasks.

That said, "DIY-friendly" does not mean "zero skill required." You will need basic competence in electrical wiring, familiarity with power tools, and the ability to safely lift and position equipment weighing 40–80 kg (90–175 lbs). For buyers who lack this confidence, a local general contractor or handyman can typically complete a monoblock installation in half a day — far cheaper than a refrigeration specialist.

3. Pre-Installation Preparation: What You Need Before Starting

Before your monoblock cold room unit arrives, confirm these prerequisites. Skipping this stage is the single most common cause of installation delays.

4. Step-by-Step Monoblock Cold Room Installation Guide

Follow these steps in order. Each step builds on the previous one — skipping ahead risks misalignment, air leaks, or electrical faults.

Step 1: Position and Mark the Wall Opening

Using the dimensional drawing included with your Flandcold monoblock unit, mark the exact cutout rectangle on the cold room wall panel. Double-check that the evaporator side will face into the cold room and the condenser side faces the exterior (or a well-ventilated space). Use a spirit level to ensure the lines are square.

Step 2: Cut the Wall Penetration

Cut along your marked lines using a jigsaw or reciprocating saw with a fine-tooth blade suitable for insulated sandwich panels. The opening should be approximately 10 mm larger than the unit body on all sides to allow for adjustment and sealant application. Clean cut edges of debris and loose insulation.

Step 3: Install the Mounting Bracket

Position the supplied mounting bracket against the exterior wall (or ceiling for top-mount models). Mark bolt-hole locations, drill into the wall substrate, and secure the bracket with appropriate anchors — chemical anchors for concrete/brick, through-bolts for steel frames. Verify the bracket is level in both axes before proceeding.

Step 4: Lift and Position the Unit

With at least two people (or mechanical lifting assistance for units above 60 kg), lift the monoblock unit into the wall opening. Slide it onto the bracket, ensuring the unit's mounting tabs engage securely. Do not release the unit until all tabs are confirmed seated.

Step 5: Secure and Level

Fasten the unit to the bracket using the supplied bolts. Check level — a slight tilt toward the drain side (1–2 degrees) ensures proper condensate drainage. Tighten all fasteners to the torque specification in the installation manual.

Step 6: Apply Perimeter Sealant

Apply a continuous bead of food-grade, low-temperature-rated silicone sealant around the entire perimeter of the unit-to-wall junction — both inside and outside. This is critical: even a 2 mm gap will let humid air infiltrate, causing frost buildup and reduced efficiency. Smooth the sealant with a tool or gloved finger for full coverage.

Step 7: Connect Electrical Power

Confirm the main power supply is OFF at the circuit breaker. Connect the supply cable to the terminal block inside the unit's electrical compartment, matching L, N, and PE (ground) as per the wiring diagram. Use the correct cable gauge — typically 2.5 mm² for units up to 3 HP and 4 mm² for 4–5 HP models. Install a dedicated circuit breaker rated for the unit's full-load current plus 25% margin.

Step 8: Initial Power-Up and Test

Restore power at the circuit breaker. The control panel should illuminate. Set the target temperature using the digital controller. Allow the unit to run for 30 minutes and verify:

• Compressor starts without unusual noise or vibration
• Evaporator fan is running and airflow is unobstructed
• Temperature display is dropping
• Condensate is draining properly
• No frost or ice formation at the wall penetration

5. Common Monoblock Installation Mistakes to Avoid

Even with a "plug and play cold room" design, mistakes happen. Here are the most frequent errors we see in the field — and how to avoid them.

6. Monoblock Unit Installation Cost and Time Breakdown

One of the strongest selling points for a monoblock cold room is the drastically reduced installation cost. Here is a realistic breakdown based on global market averages.

As the table shows, the monoblock unit installation cost is typically 70–90% lower than a traditional split system. Even if you hire an electrician and a helper, you are looking at roughly one-quarter to one-third the cost of a full refrigeration installation. And because the refrigerant circuit is factory-sealed, there are no recurring maintenance costs for leak checks or recharging.

7. Choose Flandcold: 60+ Patents, Factory-Direct Quality

When you invest in cold storage, reliability is everything. A failed compressor doesn't just mean a repair bill — it means product loss, regulatory trouble, and reputation damage. That's why thousands of businesses worldwide trust Flandcold monoblock cold rooms.

Every Flandcold monoblock unit undergoes a full-system factory test — refrigeration circuit integrity, electrical safety, temperature pull-down, and noise level — before it leaves our production line. When you receive your unit, it has already proven itself in a test environment that simulates real operating conditions.
